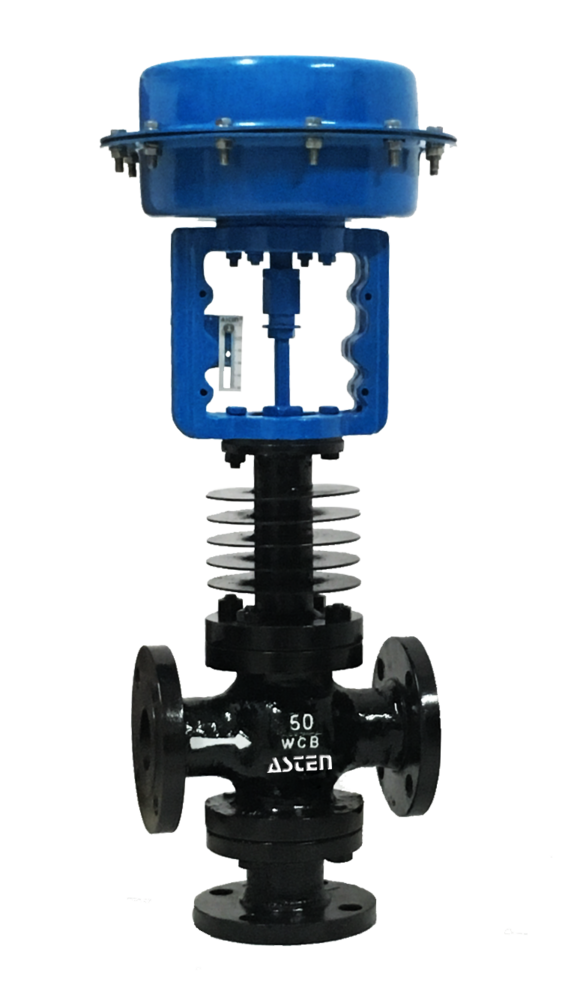

Send InquiryIndustrial Diaphragm Type Control Valve
Price 18000 INR/ Piece
MOQ : 1 Unit
Industrial Diaphragm Type Control Valve Specification
- Application
- AIR,WATER,OIL,GAS AND STEAM
- Diameter
- 1 Millimeter (mm)
- Connection
- Flange Type
- Valve Type
- CONTROL VALVE
- Capacity
- 1 Kg/hr
- Pressure Ratings
- 10
- Usage
- Industrial
- Material
- Stainless Steel
- Size
- Different Available
- Height
- 1 Millimeter (mm)
- Media
- Water
- Structure
- Control
- Product Type
- Diaphragm Type Control Valve
- Weight
- 1 Kilograms (kg)
- Color
- Blue
- Port Size
- 25MM TO 100MM
- Width
- 1 Millimeter (mm)
- Length
- 1 Millimeter (mm)
- Model
- CONTROL VALVE
- Pipe Connection Type
- Flange Type
Industrial Diaphragm Type Control Valve Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- NHAVA SHEVY
- Payment Terms
- Letter of Credit (L/C)
- Supply Ability
- 100 Units Per Week
- Delivery Time
- 7 Days
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- WOODEN PACKING
- Main Export Market(s)
- Africa, Asia
- Main Domestic Market
- All India
- Certifications
- ISO 9001,CE
Industrial Diaphragm Type Control Valve About
Diaphragm Type Control Valve
We are proposing an extensive assortment of Diaphragm Type Control Valves. They are used for controlling the flow by opening of valve with the help of air pressure that is applied through a pilot valve into the actuator which further raises the diaphragm connected to the valve. They are experiencing a wide market demand owing to their last longing performing capability along with their accessibility in different bunch of features.
- Body : WCB / CF8
- Internal : CF8
- Seat : Metal To Metal
- Diaphragm : Nitrile Canvas Moulded
- Temperature : 450 C / 220 C
- Ends : Flanged 150#
Technical specification
| Actuator | Diaphragm and Multy spring tye. Air to open/ Air to close as a standard (piston actuators/ Electrical actuators on request) |
| Bonnet | Standard for (CLD temperature up to 220 C) |
| Extended with FINS for ('CLD temperature up to 450 C) | |
| Internals | S.S. 304 (316 hard facing when required) other materials on request |
| Gland Packings | Telfon/ Grafoil |
| Trim Desing | Contoured parabolic/ Pressure balanced |
| Sizes | 1/2 to 12 |
| Characteristic | Linear/ Equal percentage/ on off (Quick opening) |
| End Connection | Flanged end to end ANSI B16.5 CL 150 (300#/ 600# available on requrst) |
| Pessure Ratings | ANSI B16.5 CL 150/ 300/ 600 |
| Leakage | ANSI B16.104 CL lV for metal to metal seating |
| (Class V and Class Vl leak tightness with soft seating on request) |
Diaphragm Operated Control Valve
- Model: ACHD
- Actuator: Spring return type, Heavy duty pnenmatic Diaphragm
- Type: Normally Close/ Open
- Size Range: 1/2 to 12
- Body: WCB
- Diaphragm Cover: M.S (Steel Metal)
- Working Press: 150#/ 300#/ 600#
- Working Temp.: 450 C
- Seating: Metal to Metal and Soft Seated
- Application: Air, Water, Oil, Gas, Steam and Hydraulic oil
