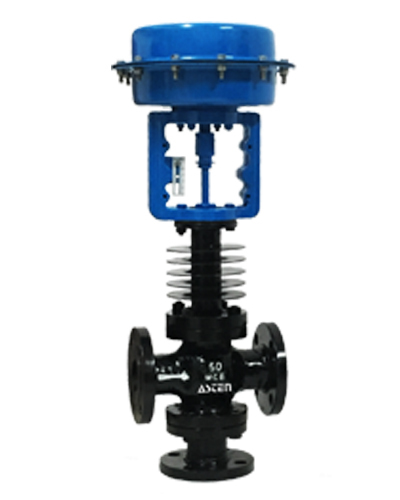

Send InquiryIndustrial Thermic Fluid Control Valve
Price 20,331 INR/ Piece
MOQ : 1 Piece
Industrial Thermic Fluid Control Valve Specification
- Valve Type
- THERMIC CONTROL VALVE
- Application
- AIR,WATER,OIL,GAS , STEAM
- Usage
- Industrial
- Material
- Stainless Steel
- Media
- Water
- Structure
- Control
- Product Type
- Thermic Fluid Control Valve
- Port Size
- 25to100
- Color
- silver
- Model
- thermic control valve
- Pipe Connection Type
- Flange Type
Industrial Thermic Fluid Control Valve Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- NHAVA SHEVY
- Payment Terms
- Letter of Credit (L/C)
- Supply Ability
- 100 Pieces Per Week
- Delivery Time
- 1 Week
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- WOODDEN PACKING
- Main Export Market(s)
- Asia, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001 , CE
About Industrial Thermic Fluid Control Valve
Technical specification
| Actuator | Diaphragm and Multy spring tye. Air to open/ Air to close as a standard (piston actuators/ Electrical actuators on request) |
| Bonnet | Standard for ( CLD temperature up to 220 C) |
| Extended with FINS for (CLD temperature up to 450 C) | |
| Internals | S.S. 304 (316 hard facing when required) other materials on request |
| Gland Packings | Telfon/ Grafoil |
| Trim Desing | Contoured parabolic/ Pressure balanced |
| Sizes | 1/2 to 12 |
| Characteristic | Linear/ Equal percentage/ on off (Quick opening) |
| End Connection | Flanged end to end ANSI B16.5 CL 150 (300#/ 600# available on requrst) |
| Pessure Ratings | ANSI B16.5 CL 150/ 300/ 600 |
| Leakage | ANSI B16.104 CL lV for metal to metal seating |
| (Class V and Class Vl leak tightness with soft seating on request) |
Diaphragm Operated Control Valve
- Model: ACHD
- Actuator: Spring return type, Heavy duty pnenmatic Diaphragm
- Type: Normally Close/ Open
- Size Range: 1/2 to 12
- Body: WCB
- Diaphragm Cover: M.S (Steel Metal)
- Working Press: 150#/ 300#/ 600#
- Working Temp.: 450 C
- Seating: Metal to Metal and Soft Seated
- Application: Air, Water, Oil, Gas, Steam and Hydraulic oil
FAQs of Thermic Fluid Control Valve:
Q: What material is used for the Thermic Fluid Control Valve?
A: The Thermic Fluid Control Valve is made of stainless steel.Q: What temperature conditions can the Thermic Fluid Control Valve handle?
A: The Thermic Fluid Control Valve is designed to operate under high-temperature conditions.Q: What type of media is compatible with the Thermic Fluid Control Valve?
A: The Thermic Fluid Control Valve is compatible with water as the media.Q: Is the Thermic Fluid Control Valve suitable for industrial usage?
A: Yes, the Thermic Fluid Control Valve is specifically designed for industrial usage.Q: Does the Thermic Fluid Control Valve provide durability in high-temperature settings?
A: Yes, its stainless steel construction ensures durability under high-temperature conditions.
