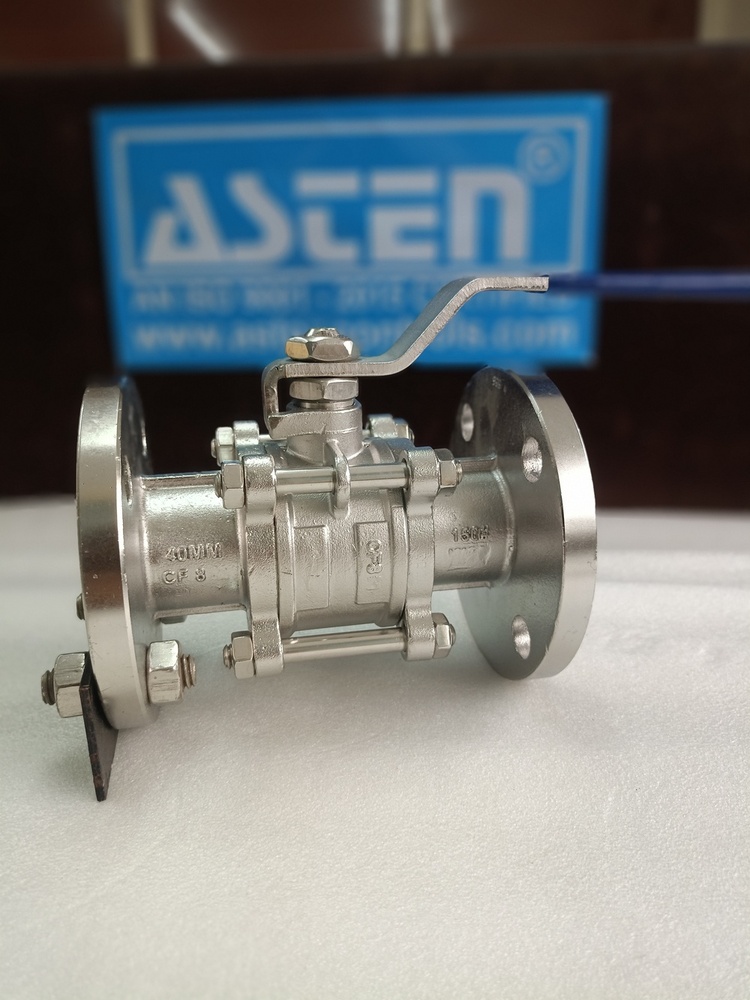

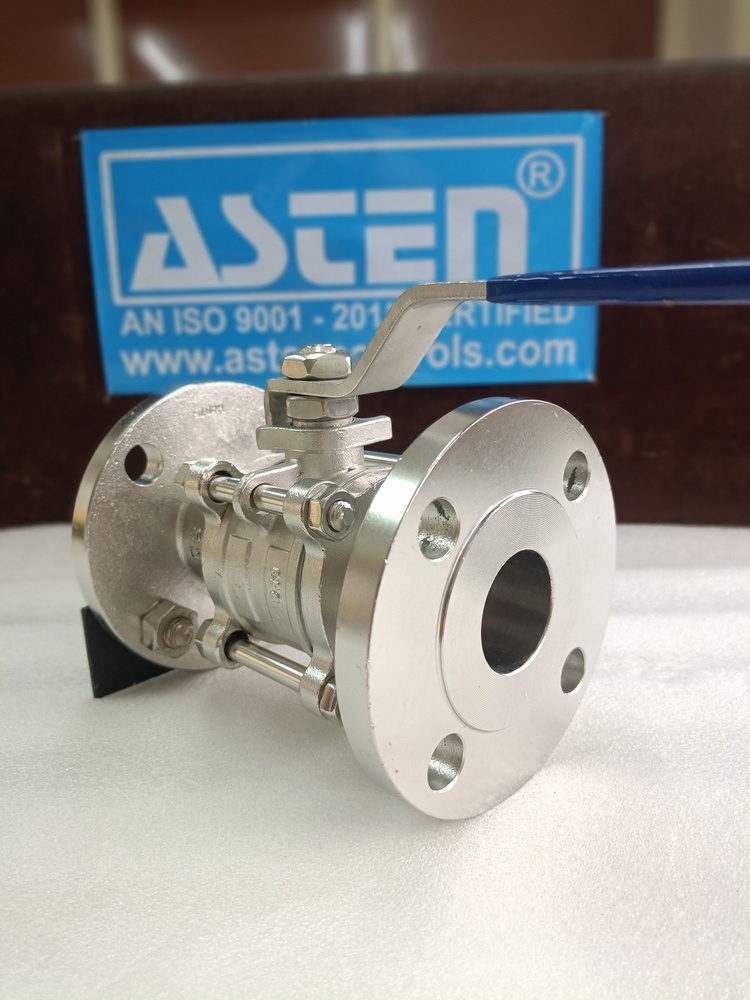

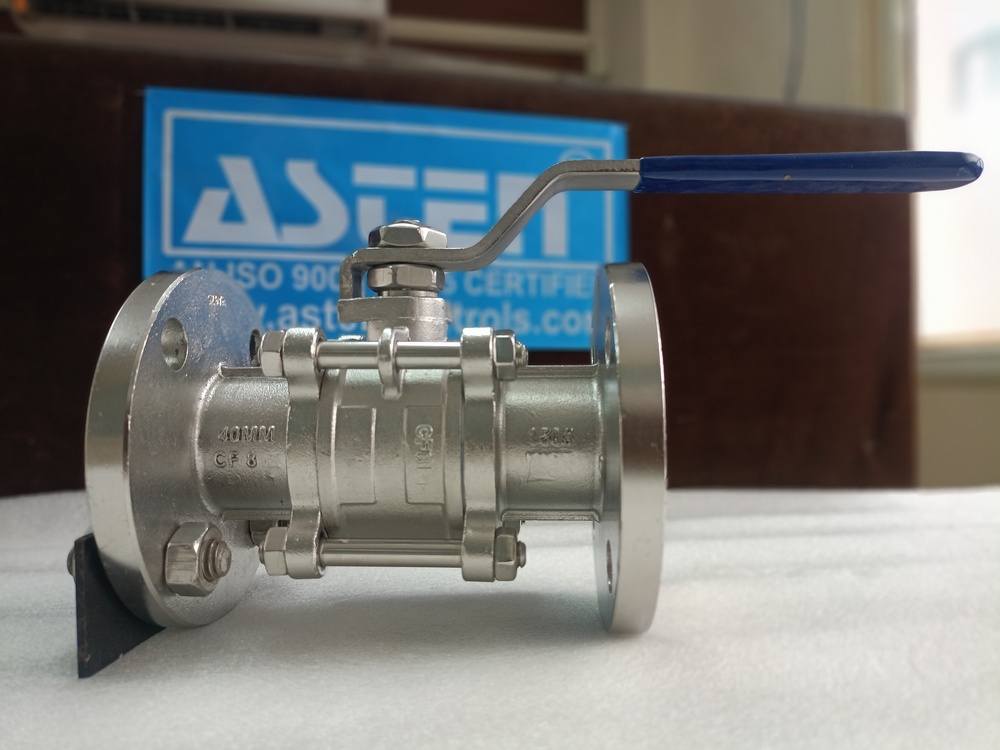

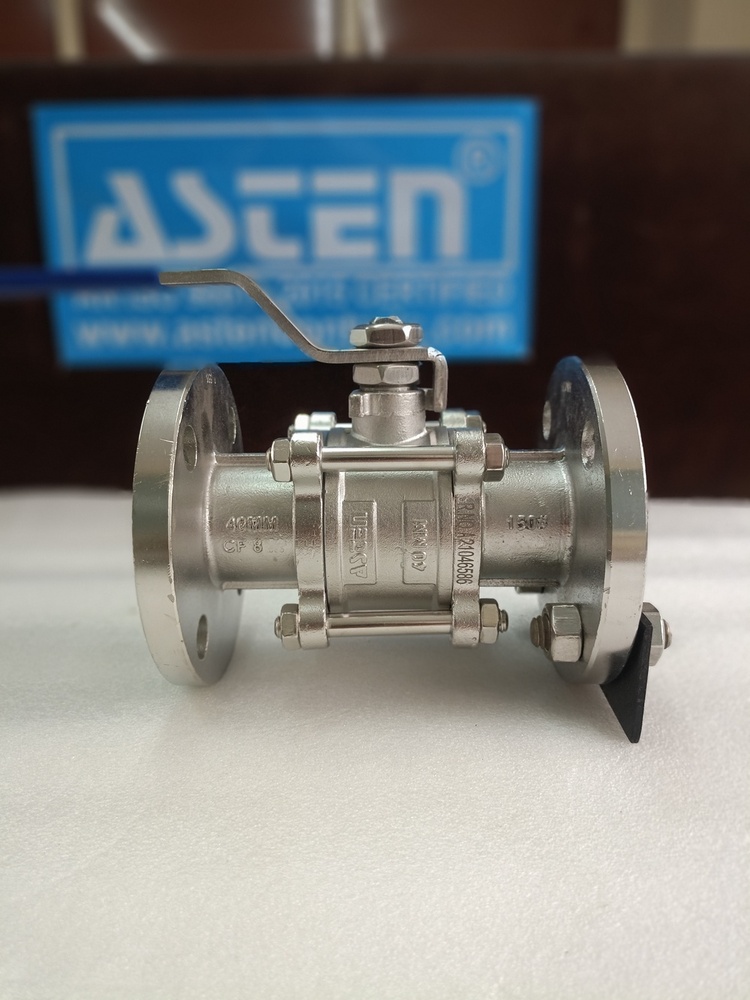

Stainless Steel 3pc Ball Valve Flange End

Product Description

3-Piece Ball Valve ï Full Bore, Screwed / Flanged / Welded End

The3-Piece Ball Valveis a robust and maintenance-friendly solution for precision flow control in demanding industrial applications. Featuring asplit-body designwith three interconnected sections, this valve allows foreasy in-line servicing, cleaning, and replacement without removing the valve from the pipelineïideal for processes requiringregular maintenance.

Constructed from premium-gradeStainless Steel (SS304 / SS316),Carbon Steel (WCB), orBrass, the valve is available inScrewed (BSP/NPT),Socket Weld, orFlanged (ANSI/DIN)configurations. It is suitable for high-pressure and high-temperature operations across multiple industries.

• ïïDesign:3-Piece Body Construction

• ïïBore Type:Full Bore for Minimal Pressure Drop

• ïïSize Range:ïï to 4ï (DN8 to DN100)

• ïïEnd Connections:

  • Screwed (BSP / NPT)

  • Flanged (ANSI / DIN / BS)

  • Socket Weld / Butt Weld

• ïïPressure Rating:Up to 1000 PSI / Class 150 / PN63

• ïïBody Material:SS304 / SS316 / WCB / Brass

• ïïBall Material:SS316 / Hard Chrome Plated

• ïïSeat Material:PTFE / RPTFE / TFM / Viton

• ïïTemperature Range:-20C to +200C

• ïïOperation:Manual, Pneumatic, or Electric Actuated

• ïïLeakage Class:Class VI ï Zero Leakage

• Chemical and Petrochemical Plants

• Oil & Gas Distribution

• Pharmaceutical and Food Processing (GMP compliant SS316)

• Steam, Water, and Air Lines

• Power Plants & Refineries

• Fire Fighting Systems

• Paint, Ink, and Solvent Lines

• ïï Lockable Handle

• ïï Fire Safe and Antistatic Versions

• ïïï Pneumatic / Electric Actuated Versions

• ïï High-Temperature / Cryogenic Compatible

• ïï Easy Clean-Out for CIP/SIP Systems (Pharma & Food Grade)
