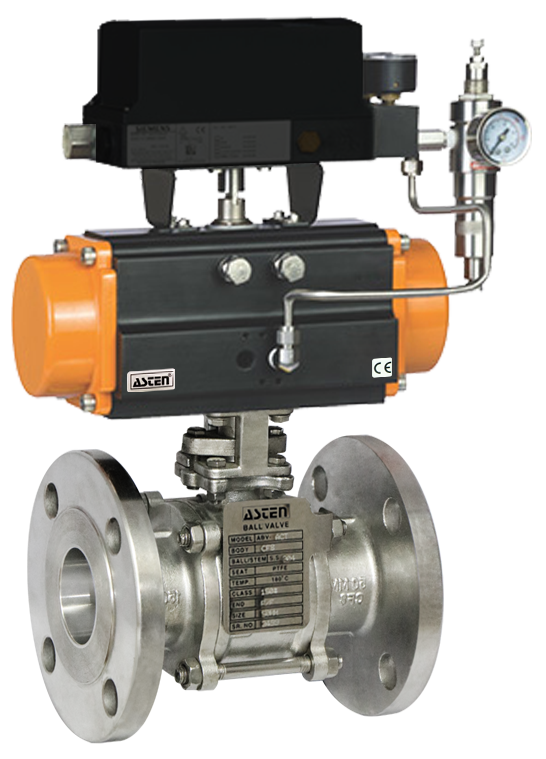

Industrial Pneumatic 3 Pc 2 Way Ball Valve Flanged

Price 4,800 INR/ Piece

MOQ : 5 Pieces

Industrial Pneumatic 3 Pc 2 Way Ball Valve Flanged Specification

  • Connection
  • Screw End
  • Usage
  • Industrial
  • Material
  • Stainless Steel
  • Media
  • Water
  • Size
  • 1 1/2 Inch
  • Product Type
  • Pneumatic 3 Pc 2 Way Ball Valve
  • Port Size
  • 15-300MM
  • Color
  • ORANGE


Industrial Pneumatic 3 Pc 2 Way Ball Valve Flanged Trade Information

  • Minimum Order Quantity
  • 5 Pieces
  • FOB Port
  • NHAVA SHEVY
  • Payment Terms
  • Letter of Credit (L/C)
  • Supply Ability
  • 1000 Pieces Per Week
  • Delivery Time
  • 7 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • WOODEN PACKING
  • Main Export Market(s)
  • Asia, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001,CE


About Industrial Pneumatic 3 Pc 2 Way Ball Valve Flanged

We have attained extreme reputation in the worldwide market for proposing our clients with an immense range of Pneumatic 3 PC 2 Way Ball Valves. They are designed using the up to the minute technology to ensure excellent functioning for a long lasting time period. The Valves have the finest components that enable in their defect less working. They are used in many industries to serve day to day applications. The Pneumatic 3 PC 2 Way Ball Valves give resistance against rust and are damage free.

  • Body : WCB / CF8 / CF8M
  • Ball : CF8 / CF8M
  • Design : 3 Piece Design
  • Seat : PTFE
  • Leakage Class : Class VI
  • Pneumatic Press.: 3.5 Bar
  • Temp.: 180 C
  • Flange Class Table : ANSI B 16.5 Class 150#

Size: 1/2 to 14 Screwed/ Flanged/ Triclover/ Socket Weld

Actuator

Type

Rack and Pinion Type

Actuation

Double Acting/ Single Acting (Spring Return)

Mounting Std.

ISO 5211 an International Standard

Pneumatic Connections

NAMUR Standard

Valve

Body

ASTM A216 Gr. WCB/ ASTM A351 Gr. CF8/ CF8M

Ball

ASTM A351 Gr. CF8/ CF8M

Stem

Stainless Steel AISI 304/ AISI 316/ AISI 410

Gland

Stainless Steel AISI 304/ AISI 316/ M.S

Seat Packing

PTFE (Gland Filled, Carbon Filled, Otional in case of high temperature)

End Connection

Screwed to -BSP/ NPT/ Socket Weld Ends to ANSI B 16.11

Flanged to - ANSI B 16.5 Class 150/300

Table- D,E,F (On Request)

Triclover Ends - (On Request)

Socket Weld - (On Request)


Item

Type of Test

Testing Pressure

Working Pressure

Operating Temperature (high temp. on request)

Actuator

Pneumatic Bubble Test

180 PSIG

45 to 150 PSIG

-20 C to 80 C

Valve Body Screwed End

Hydraulic

450 PSIG

315 PSIG

Max. 180 C

Valve Body Flanged 150

Hydraulic

450 PSIG

315 PSIG

Max. 180 C

Valve Body Flanged 300

Hydraulic

112 PSIG

815 PSIG

Max. 180 C
