Product Description

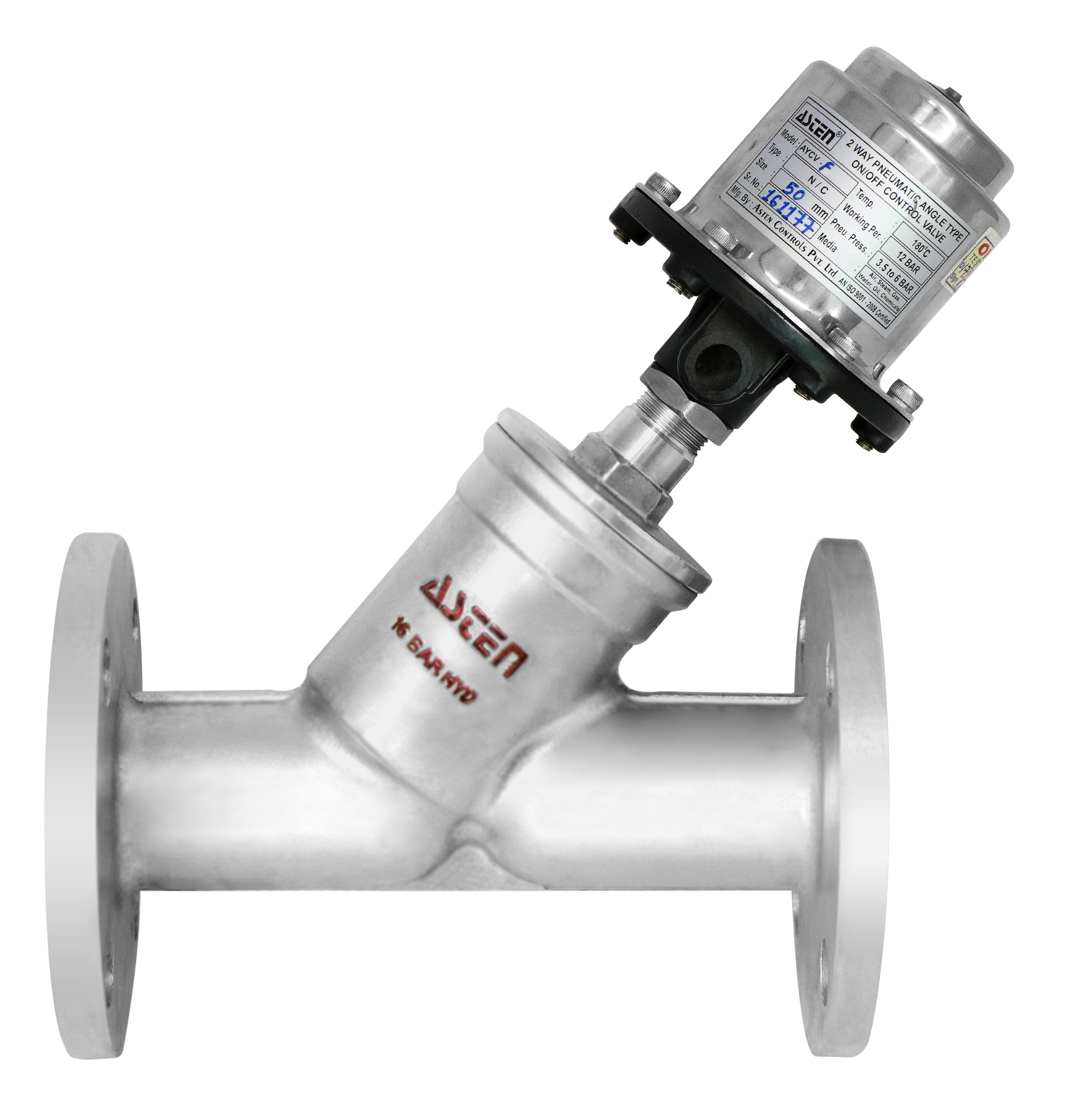

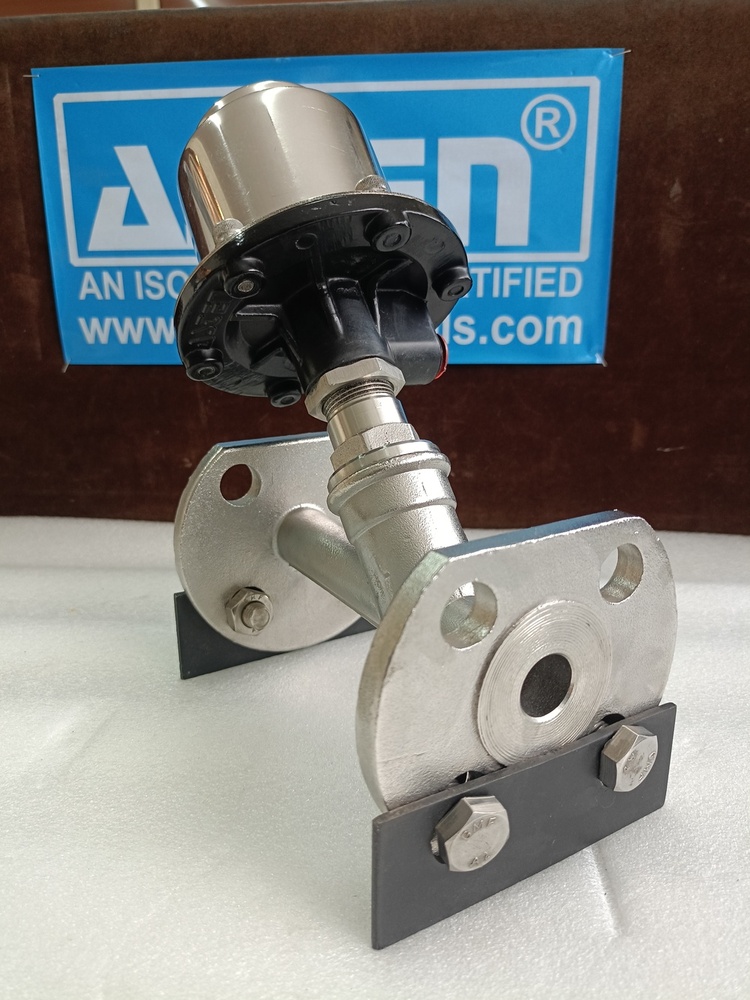

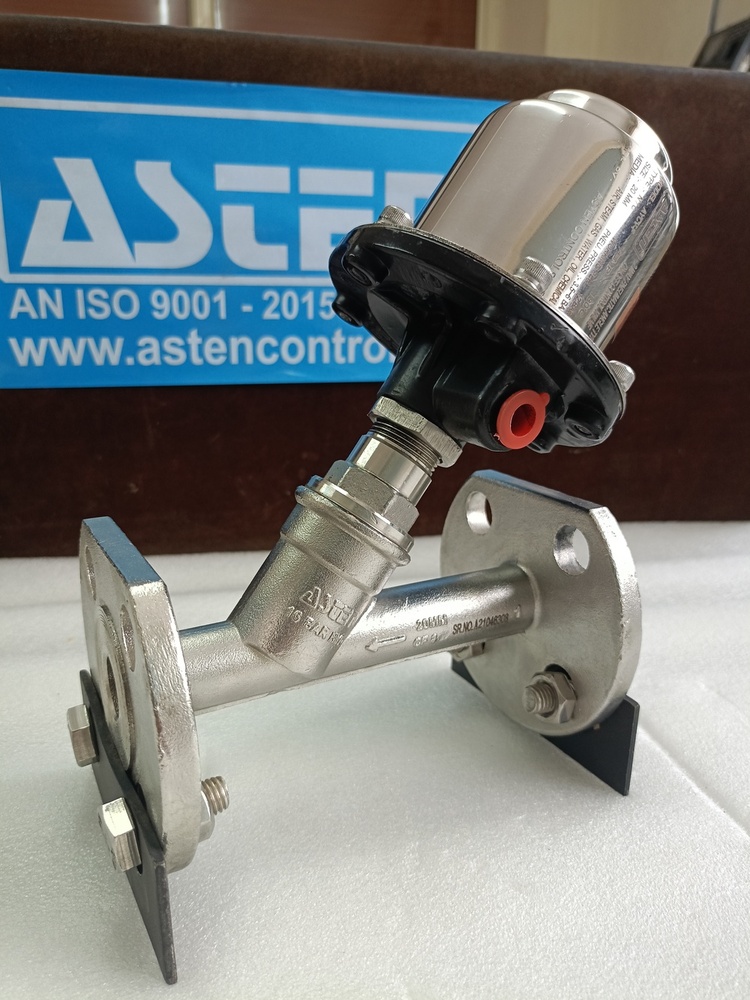

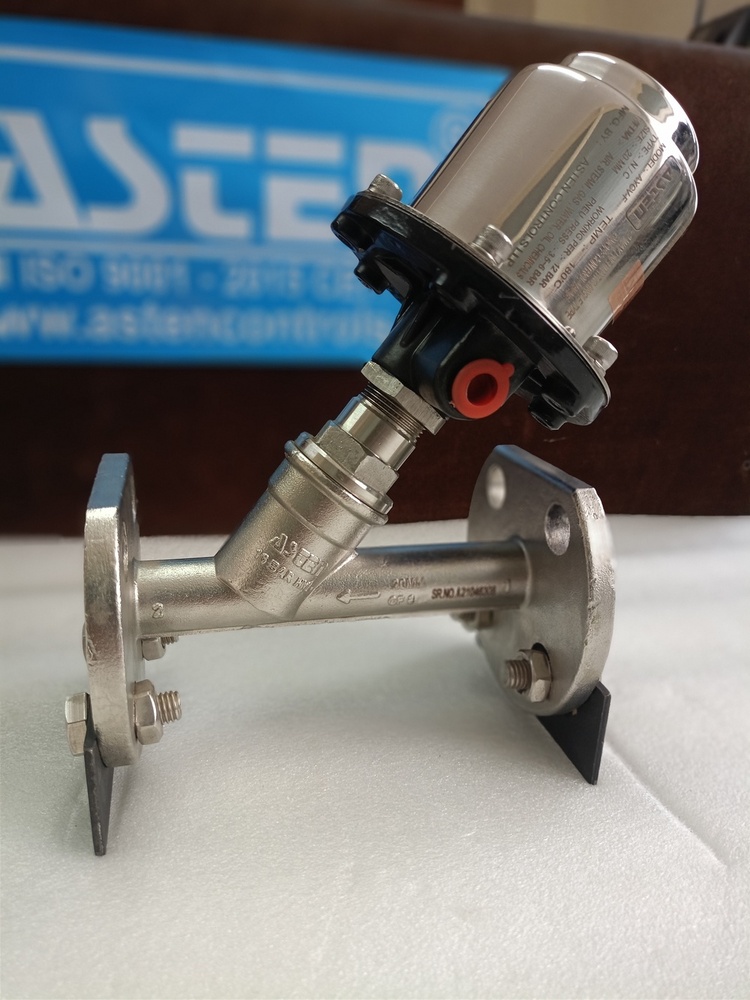

The offered 'Y' Type Control Valve F/E is made available by us for use in the various commercial and industrial applications. The Y Type Control Valve is used for control and regulate on/off application of pipeline. It is applied in many fields of pneumatic operated automation equipments like textile machines, chemical plants, and pharmaceutical machines. These valves are useful for different media like water, gas and fuel. They are designed such that if the air supply fails, the control valve will be either fully open, or fully closed, depending upon the safety requirement of the process. The 'Y' Type Control Valve F/E is very safe.
- Valve Body : IC CF8
- Working Parts : SS 304
- Working Press.: Upto 16 Bar
- Temp.: Upto 180 C
- Pneumatic Press.: 3.5 to 7 Bar
- Leakage : Bubble Tight Shut off
- Ends : Flanged 150# / screwed end / tc end
Specification
Ends | Screwed, Flanged |
Media | Air, Gas Steam, Water and Chemical |
Brand | Asten Controls LLP |
Size | 1/2 to 2 Inch |
Model | AYCV-F |
Product Type | Normally Close, Open |
Temperature (deg. Celsius) | 180 Degree C |
