THERMIC FLUID CONTROL VALVE

Product Description

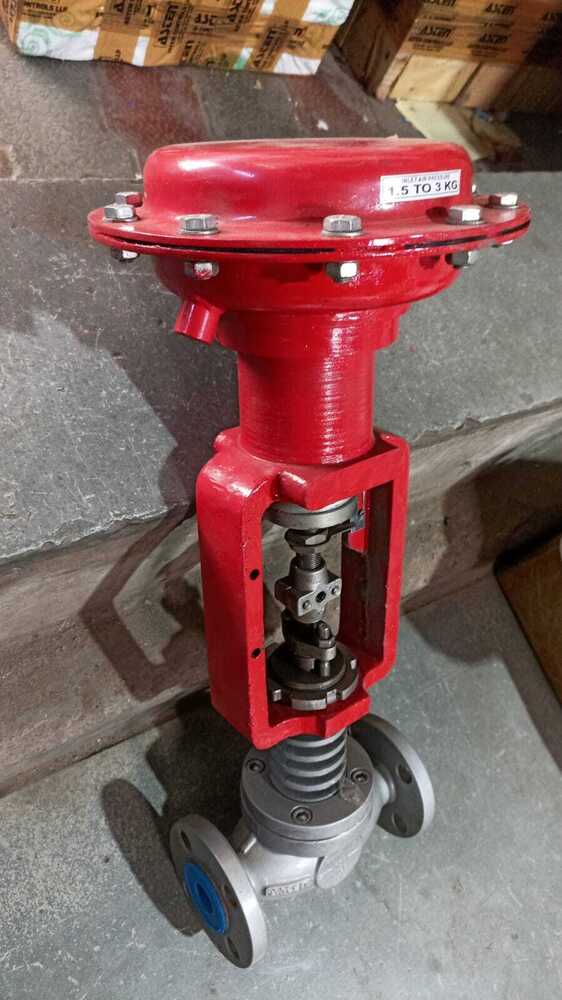

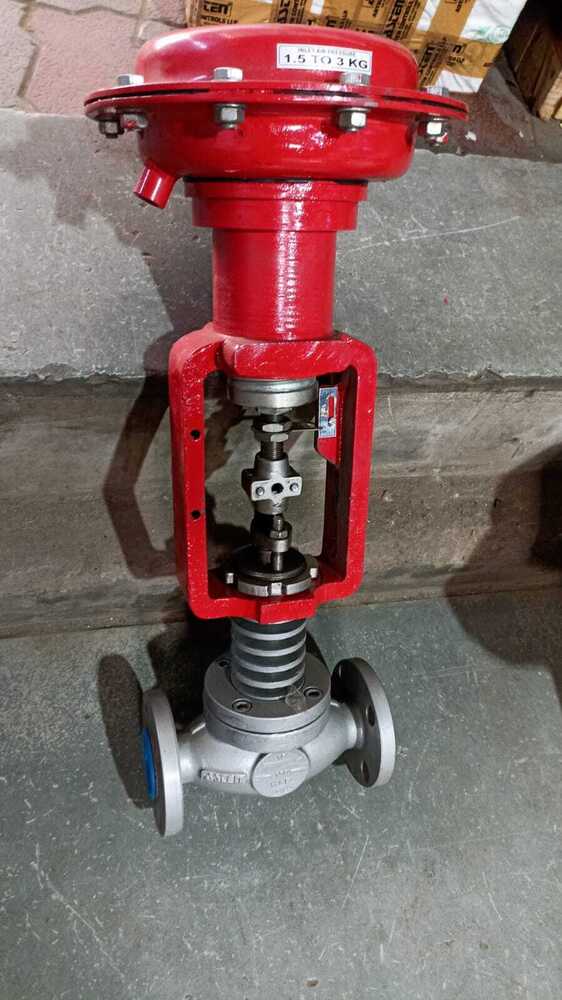

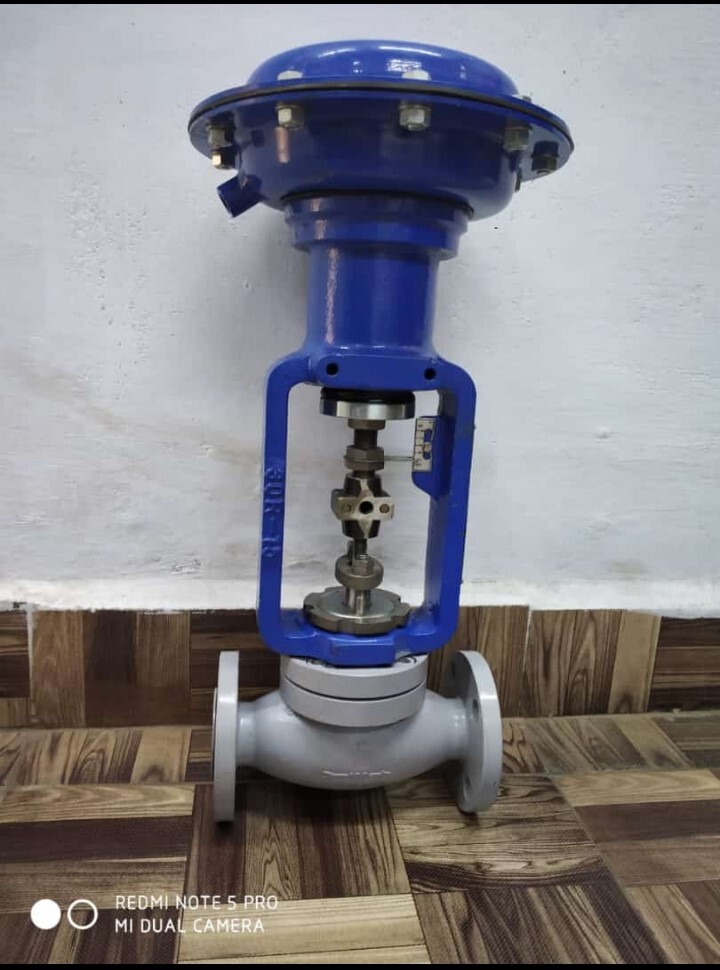

Thermic Fluid Control Valve High-Temperature Valve for Heat Transfer Fluid Regulation

Our Thermic Fluid Control Valve is specially designed to handle high-temperature heat transfer fluids used in thermic fluid heaters, hot oil systems, and industrial process plants. Built to withstand extreme operating conditions, the valve ensures accurate modulation and flow control of thermal oils and synthetic fluids without leakage or breakdown under continuous heat exposure.

Made from high-grade WCB, Cast Steel, or Stainless Steel, this valve is engineered with specialized high-temperature seals, making it ideal for boiler systems, chemical processing units, textile plants, and heat exchangers.

•  High-Temperature Resistance: Up to 350C or higher (fluid-dependent)

•  Material Options: WCB / Cast Steel / CF8 / CF8M / Alloy Steel

•  Sizes: " to 12" (15mm to 300mm)

•  End Connection: Flanged (ANSI/DIN), Screwed, or Socket Weld

•  Actuation Options: Pneumatic, Motorized (Electric), or Manual

•  Flow Control: Linear / Equal Percentage

•  Leakage Class: ANSI Class IV / V

•  Mounting: Horizontal or vertical, as per application

•  Fire-Safe Design: Optional for critical applications

•  Coating: Heat-resistant paint and insulation-friendly body

• Media: Thermic Fluids, Hot Oil, Heat Transfer Fluids

• Max. Operating Temp: Up to 350C (custom up to 450C)

• Pressure Rating: PN16 / PN25 / PN40 / ANSI 150 / 300

• Seat & Seal Materials: PTFE / Graphite / Metal-to-Metal

• Control Signal Input (Actuated): 420 mA, 010V, ON/OFF

• Trim Options: SS 304 / SS 316 / Hardened Stainless Steel

• Mounting: Inline / Panel / Skid Integration

• Thermic Fluid Heaters

• Oil Heating Skids

• Textile Dyeing & Drying Plants

• Chemical Process Reactors

• Food & Beverage Industries

• Petrochemical & Refining Plants

• Heat Exchangers & Furnace Systems

• Anti-scald & fire-safe design

• Bypass arrangement for continuous operation

• Insulation jacket for safety

• ATEX/Flameproof actuators for hazardous areas

• Valve with smart positioner or feedback system
