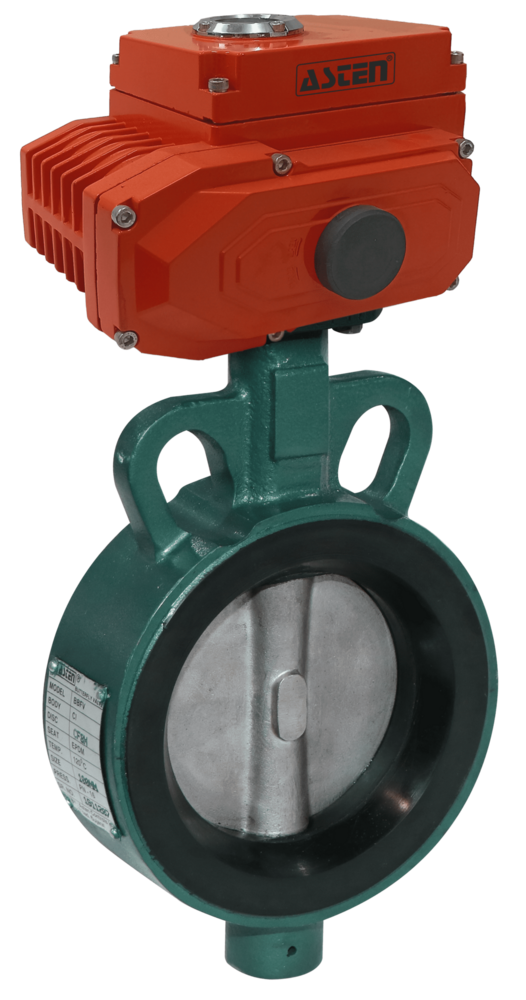

Send InquiryIndustrial Butterfly Valve
Price 4350 INR/ Piece
MOQ : 100 Pieces
Industrial Butterfly Valve Specification
- Usage
- Industrial
- Size
- 1/2 to 40 inch
- Material
- Stainless Steel
- Power Source
- Electrical
- Product Type
- Butterfly Valve
- Media
- Water
- Color
- SILVER
- Port Size
- 1/2 to 40 inch
- Shape
- BUTTERFLY VALVE
Industrial Butterfly Valve Trade Information
- Minimum Order Quantity
- 100 Pieces
- FOB Port
- NHAVAH SHEVY
- Payment Terms
- Letter of Credit (L/C)
- Supply Ability
- 100 Pieces Per Week
- Delivery Time
- 1 Week
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- WOODEN PACKING
- Main Export Market(s)
- Asia, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001 , CE
About Industrial Butterfly Valve
Size: 1/2 to 40
Actuator
| Type | Rack and Pinion Type |
| Actuation | Double Acting/ Single Acting (Spring Return) |
| Mounting Std. | ISO 5211 an International Standard |
| Pneumatic Connections | NAMUR Standard |
Valve
| Body | I.C/ CI (IS 210 Gr. FG 200/ 220) WCB/ S.S 304/ S.S 316 |
| Disc | CF8/CF8M/ CF3M/ S G. Iron/ Coated/ Powder Coated Nylon Coated/ Rubber Line |
| Seat | EPDM/ Nitrile/ Hayplon/ Viton/ Moulded or replaceable muffler type |
| Shaft | AISI 410/ CF8/ CF8M/ CF3M |
| Valve Type | Centric disc butterfly valve with a single piece rubber lined body |
| Body Tye | Short water (sandwiched between flanges) |
| Seat Type | Integrally moulded with the body |
| End Connecting | PN 10/ PN 16 (on request |
| Pressure Rating | -25 C to 130 C (depending on MOC) |
| Oper Temperature Range | Tight shut off |
| Seat Leakage | Hand lever for sizes from 40mm to 350mm |
| Operation | Worm gear boxes for 40mm to 1000 mm |
| Item | Type of Test | Testing Pressure | Operating Temperature (Normal) | Operating Temperature (high) |
| Actuator | Pneumatic Bubble Test | 180 to 150 PSIG | -20 C to 80 C | High temp. on request |
| Valve Body | Hydraulic | 225 PSIG | Max. 180 C | High temp. on request |
| Seat | Hydraulic | 150 PSIG | Max. 180 C | High temp. on request |
FAQs of Butterfly Valve:
Q: What material is used in the construction of the Butterfly Valve?
A: The Butterfly Valve is made of Stainless Steel.Q: What is the power source for the Butterfly Valve?
A: The Butterfly Valve operates using an Electrical power source.Q: What type of media can the Butterfly Valve handle?
A: The Butterfly Valve is specifically designed to handle water.Q: Where is the Butterfly Valve typically used?
A: The Butterfly Valve is intended for industrial usage.Q: What size options are available for the Butterfly Valve?
A: The Butterfly Valve is available in sizes ranging from 1/2 inch to 40 inch.
