Butterfly Valve

Product Description

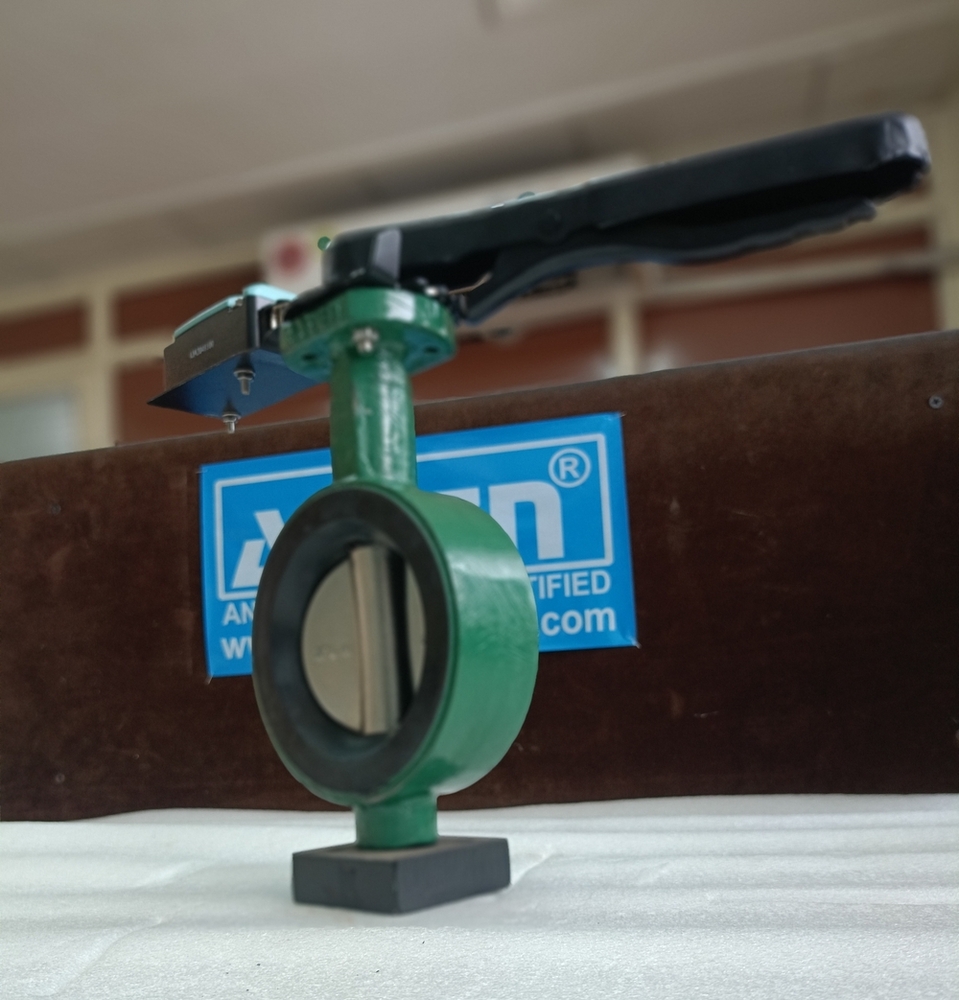

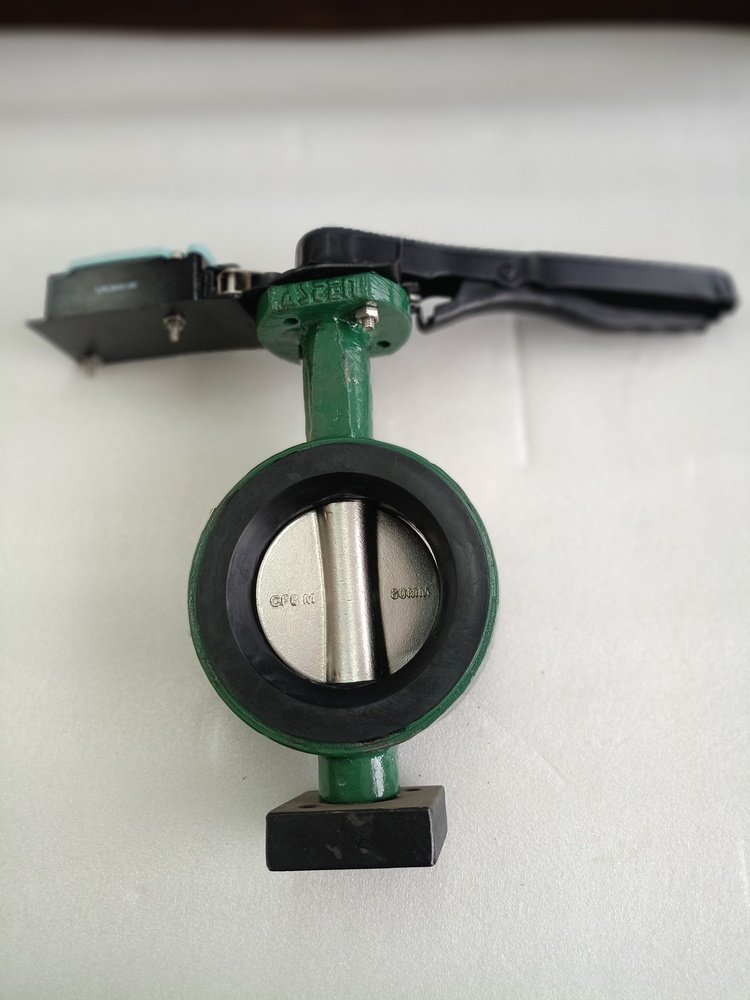

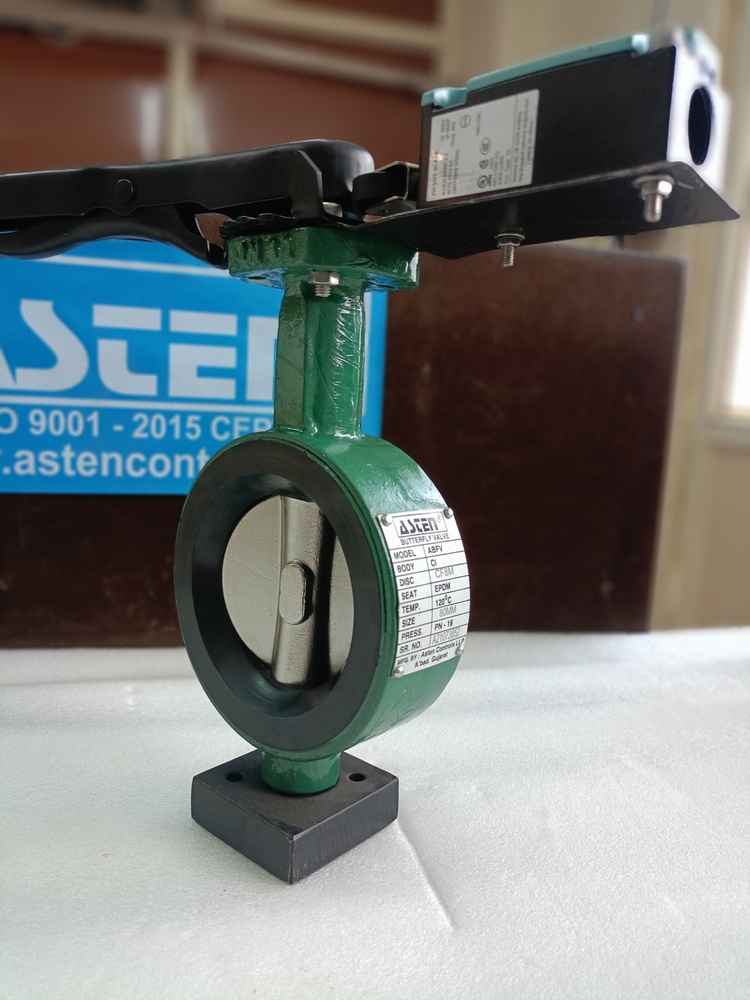

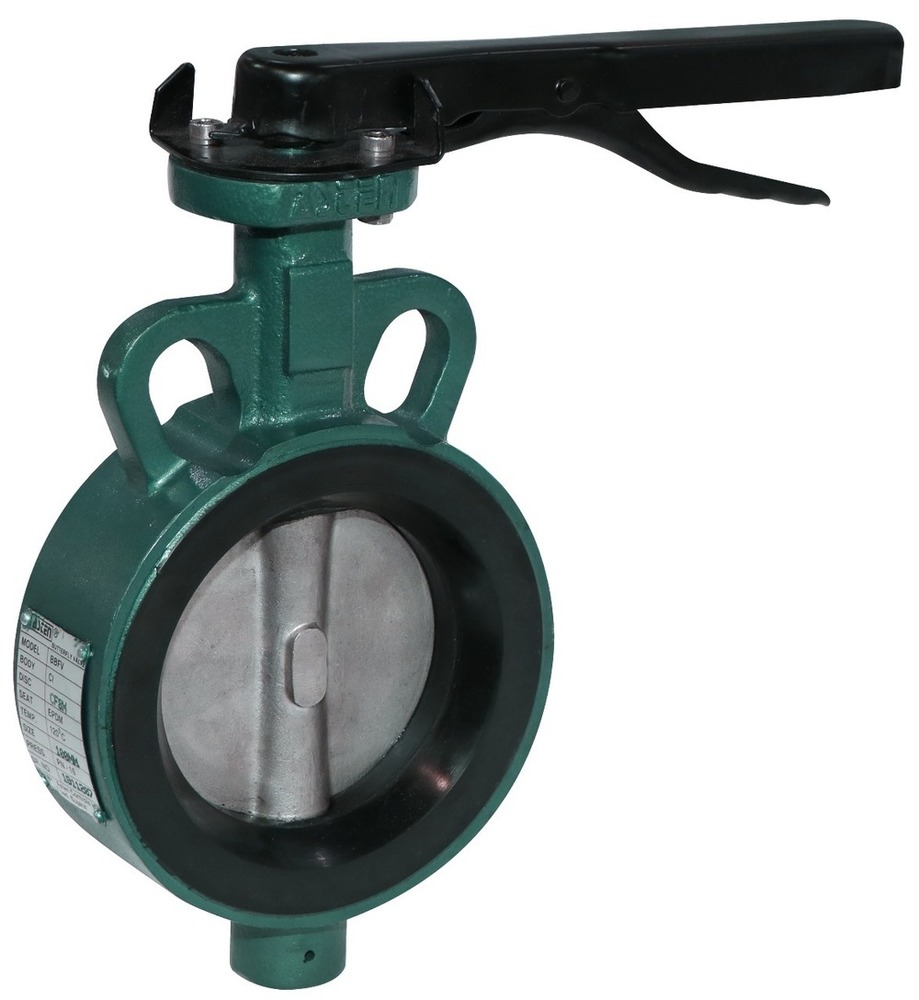

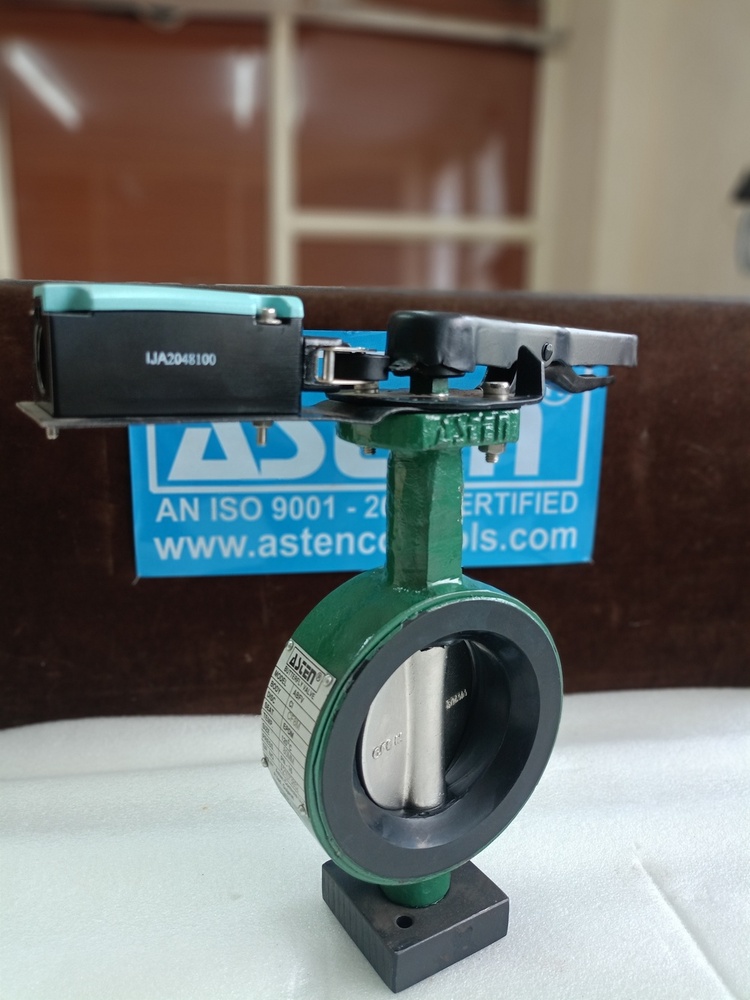

Industrial Butterfly Valve Wafer / Lug / Flanged Type

TheButterfly Valveis a quarter-turn rotational motion valve used to start, regulate, and stop flow in pipelines carryingwater, gas, air, steam, slurry, and other fluids. Designed forlow to high pressure and temperatureapplications, it is compact, cost-effective, and ideal for tight shut-off and throttling control.

Available inWafer, Lug, and Double Flanged types, our butterfly valves are manufactured usinghigh-grade Cast Iron, Ductile Iron, Stainless Steel, and Carbon Steel. With options formanual, pneumatic, or electric actuators, these valves are widely used inwater treatment, HVAC, chemical, power plants, and process industries.

• Valve Type:Wafer / Lug / Double Flanged Butterfly Valve

• Size Range:2 to 48 (50mm to 1200mm)

• Body Material:CI / WCB / SS304 / SS316 / DI

• Disc Material:SS304 / SS316 / DI with Nylon or Epoxy Coating

• Seat Material:NBR / EPDM / PTFE / Viton

• Operation:Lever / Gear / Pneumatic / Electric Actuator

• Pressure Rating:PN10 / PN16 / ANSI 150

• Temperature Range:-20C to +180C

• Design Standard:IS / BS / DIN / ANSI

• End Connection:Wafer / Lug / Flanged (as per request)

• Water and Wastewater Treatment Plants

• Fire Fighting & Sprinkler Systems

• HVAC and Air Handling Systems

• Chemical & Petrochemical Industries

• Food and Beverage Pipelines

• Power Generation (Cooling Water Systems)

• Oil & Gas Industries

• Marine and Shipbuilding

• Paper & Pulp Industries

• Cement & Steel Plants

• Electric or Pneumatic Actuation (ON/OFF or Modulating)

• Lockable Handle or Gear Box Operation

• Epoxy Powder Coated / Nylon Coated Disc

• PTFE Lined Body for Corrosive Fluids

• Bi-directional Flow Design

•
