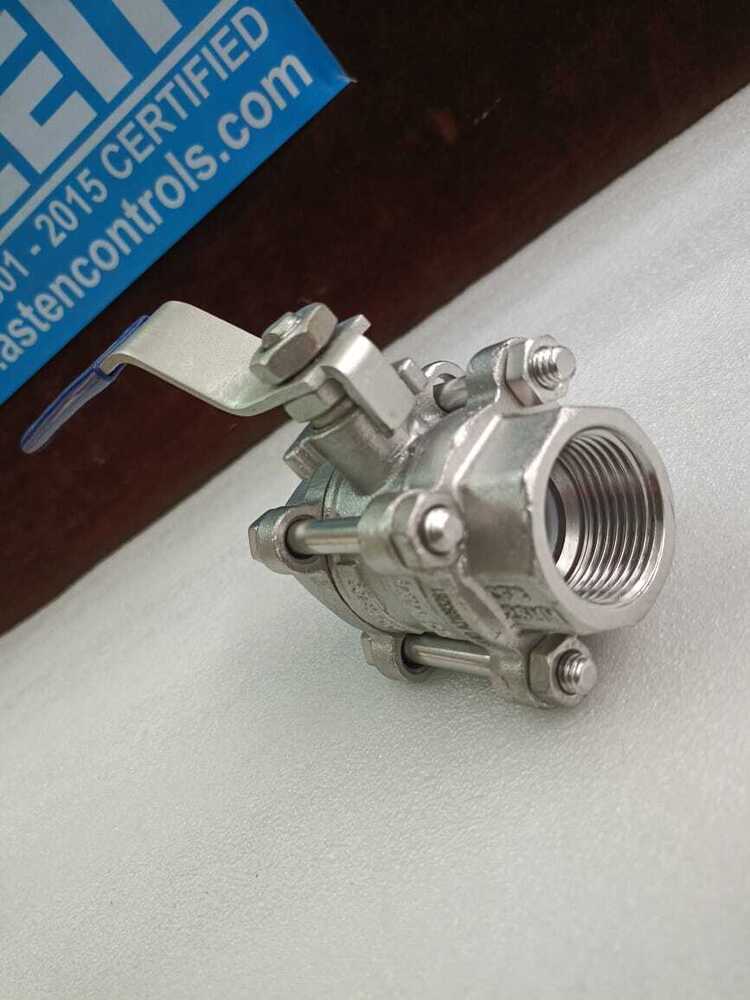

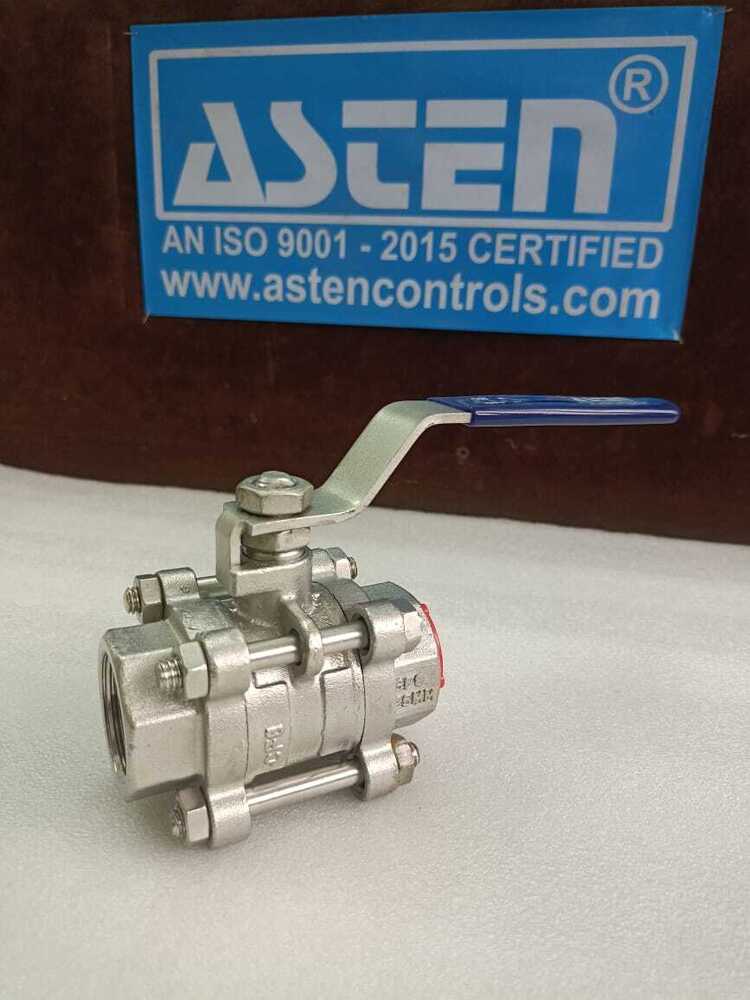

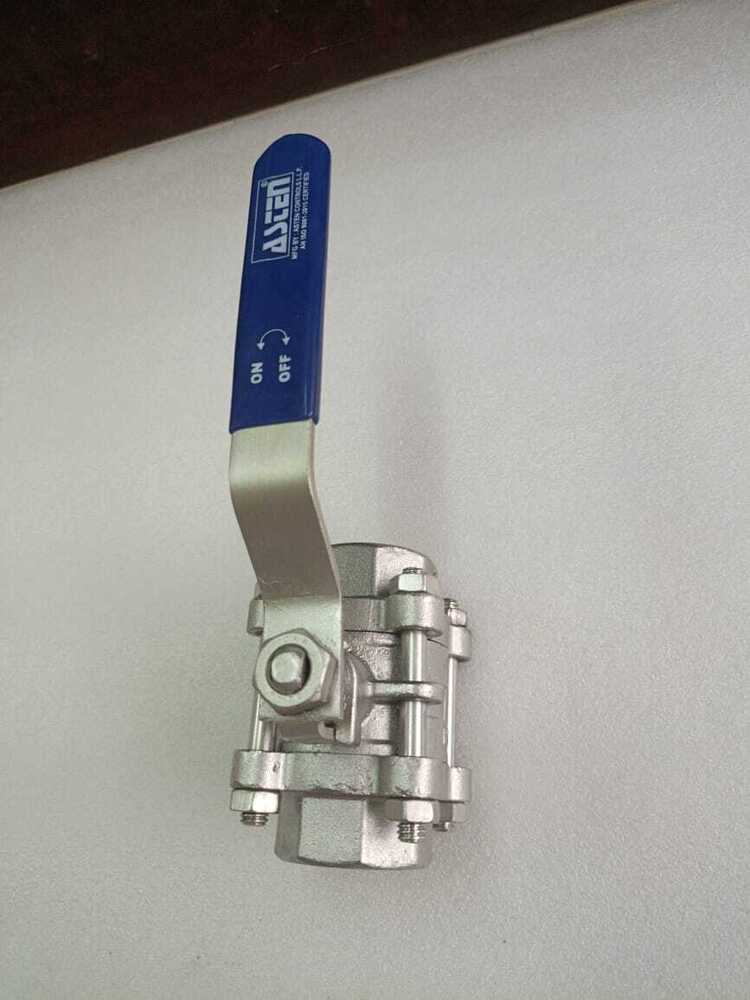

2 way 3 pc ball valve screwed end MANUAL

Product Description

2-Way Ball Valve ï Full Bore, Screwed / Flanged End

The2-Way Ball Valveis a highly efficient, quarter-turn valve used forshut-off and flow controlin a variety of fluid and gas handling systems. With two ports (inlet and outlet), it is designed to allow flow inone direction onlyand is ideal for applications that requireisolation of mediawithzero leakage.

Constructed from high-grade materials likeStainless Steel (SS304 / SS316),Brass, orWCB, and available withScrewed (BSP/NPT)orFlanged (ANSI/DIN)ends, this valve offers excellentdurability, corrosion resistance, andreliable performanceunder high pressure and temperature conditions.

• ïïFlow Type:2-Way (Two Port ï Inlet & Outlet)

• ïïEnd Connections:Screwed (BSP/NPT) or Flanged (ANSI/DIN/BS)

• ïïBody Material:SS304 / SS316 / Brass / WCB / Forged Steel

• ïïSize Range:ïï to 4ï (DN8 to DN100)

• ïïPressure Rating:Up to 1000 PSI / ANSI 150/300

• ïïBore Type:Full Bore / Reduced Bore

• ïïSeat Material:PTFE / RPTFE / TFM / Viton

• ïïLeakage Class:Class VI ï Bubble Tight Shutoff

• ïïHandle:Lever Operated (Lockable Option Available)

• ïïTemperature Range:-20C to +200C

• ïïDesign:1-PC / 2-PC / 3-PC Construction Available

• Water & Wastewater Management

• Oil & Gas Pipelines

• Chemical and Petrochemical Industries

• HVAC & Utility Systems

• Food & Beverage Industry (SS316)

• Pharmaceuticals

• Fire Safety & Steam Lines

• ïï Lockable Handle for Safety

• ïïï ISO Mounting Pad for Actuation

• ïï Fire Safe & Antistatic Design

• ïïï High-Temperature or Cryogenic Versions

• ïï Pneumatic or Electric Actuator Operated
