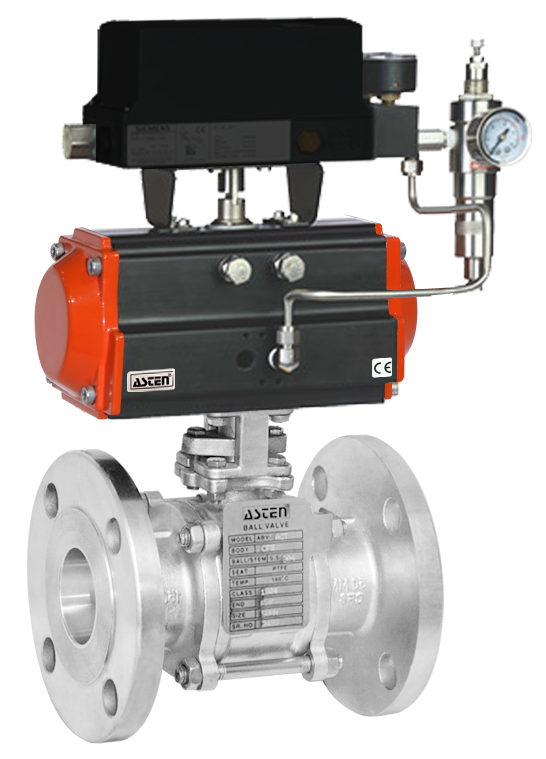

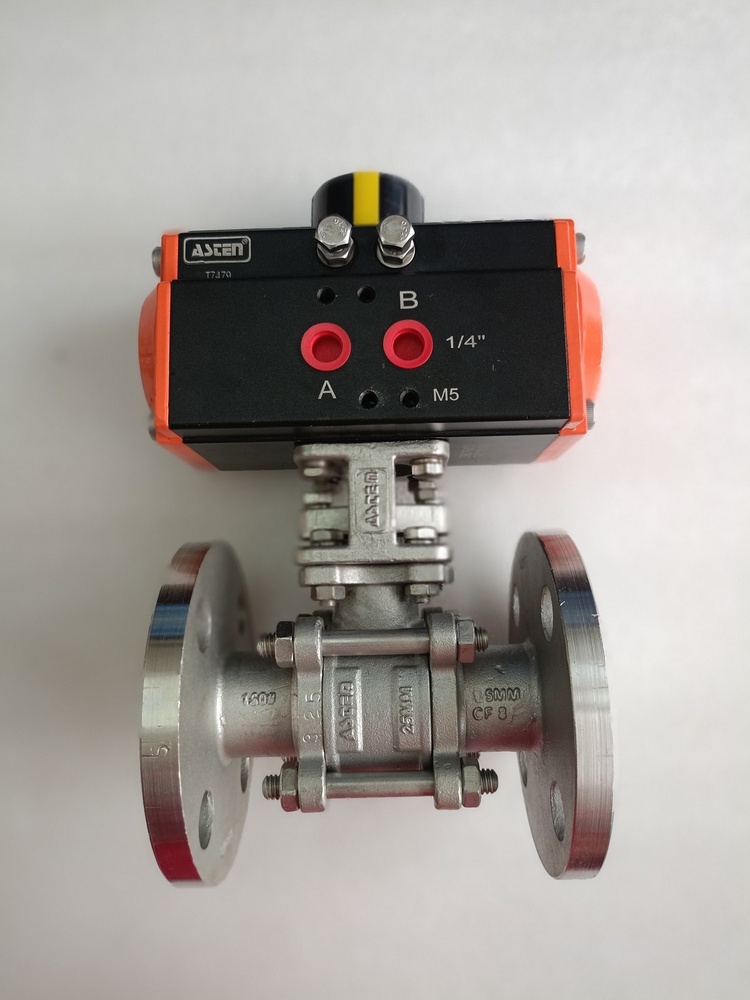

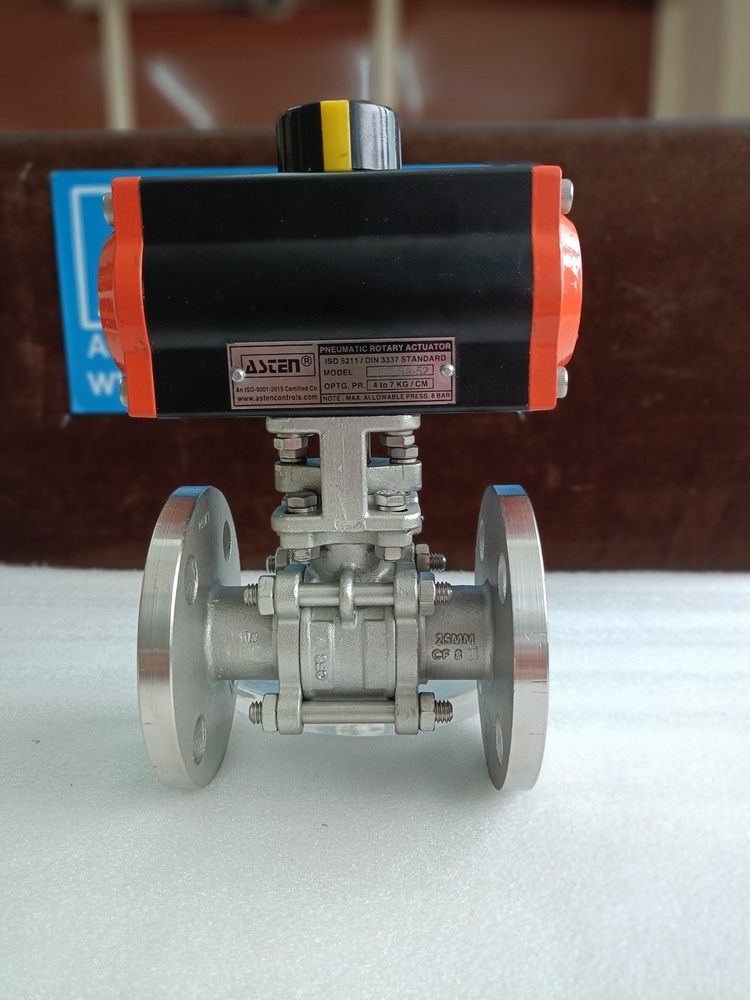

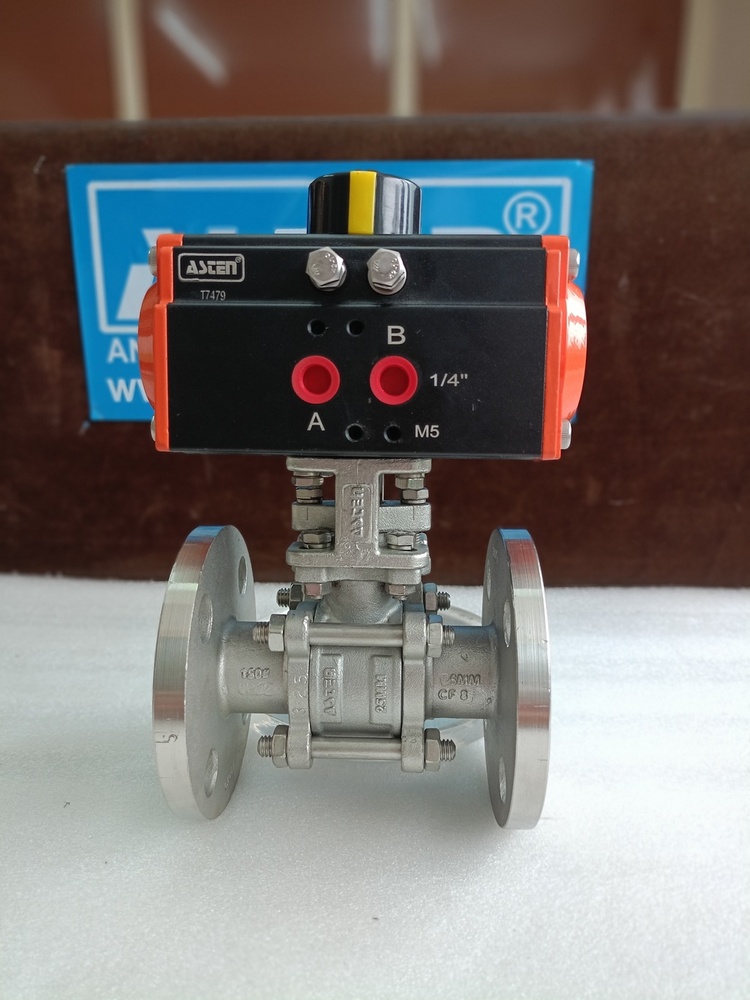

Pneumatic 3 Piece Ball Valve Flanged End

Product Description

Flanged End Ball Valve ï Full Bore / Reduced Bore, ANSI / DIN / BS Standard

TheFlanged Ball Valveis a high-performance, full-port valve engineered forreliable flow control and tight shutoffin industrial fluid handling systems. Designed withintegral flanged ends, this valve is ideal forhigh-pressure and high-temperatureapplications wheresecure bolted connectionsandminimal leakageare critical.

Available in2-piece or 3-piece design, this valve is manufactured from durable materials likeStainless Steel (SS304 / SS316),Carbon Steel (WCB), orCast Iron (CI)and conforms to international flange standards such asANSI B16.5,DIN PN16/PN40, andBS 4504. Thefull boreconstruction ensuresminimal pressure drop, making it suitable for applications with high flow requirements.

• ïïEnd Connection:Flanged ï ANSI / DIN / BS Standard

• ïïSize Range:ï to 12ï (DN15 to DN300)

• ïïBody Type:2-Piece / 3-Piece

• ïïBore Type:Full Bore / Reduced Bore

• ïïMaterial Options:

  • Stainless Steel (SS304 / SS316)

  • Carbon Steel (WCB)

  • Cast Iron / Ductile Iron

• ïïBall & Stem:SS316 / SS304, Antistatic & Blow-out Proof

• ïïSeat Material:PTFE / RPTFE / TFM / Graphite

• ïïPressure Rating:ANSI 150 / 300 / PN16 / PN40

• ïïTemperature Range:-20C to +250C

• ïïOperation:Lever Handle / Gear Operated / Pneumatic / Electric

• ïïLeakproof Performance:Class VI (Bubble-Tight Shutoff)

• Petrochemical & Refineries

• Water Treatment Plants

• Oil & Gas Industries

• Chemical Processing Units

• Steam Lines & Utility Piping

• HVAC & Fire Protection Systems

• Power Plants & Boiler Systems

• Food, Dairy & Beverage (SS316)

• ïï Lockable Lever Handle

• ïï Fire Safe Design (API 607)

• ïïï Pneumatic or Electric Actuated

• ïïï High-Temperature & Cryogenic Sealing Options

• ïï Antistatic and Blowout-Proof Stem

• ïï Gearbox Operation for Larger Sizes
