NAMUR Solenoid Valve

Product Description

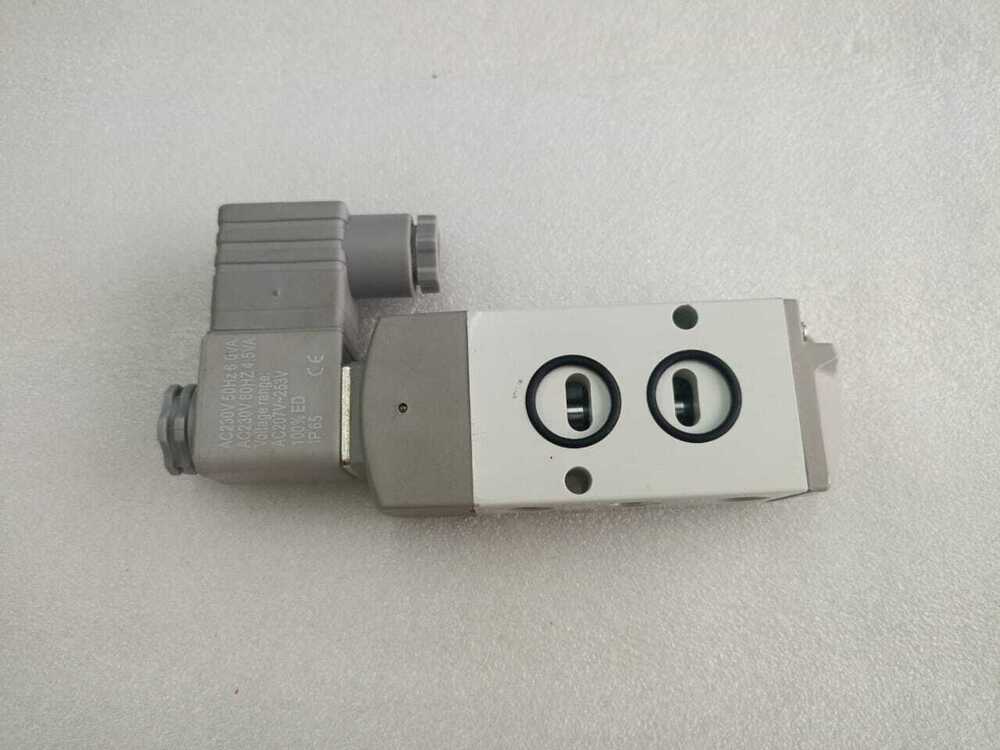

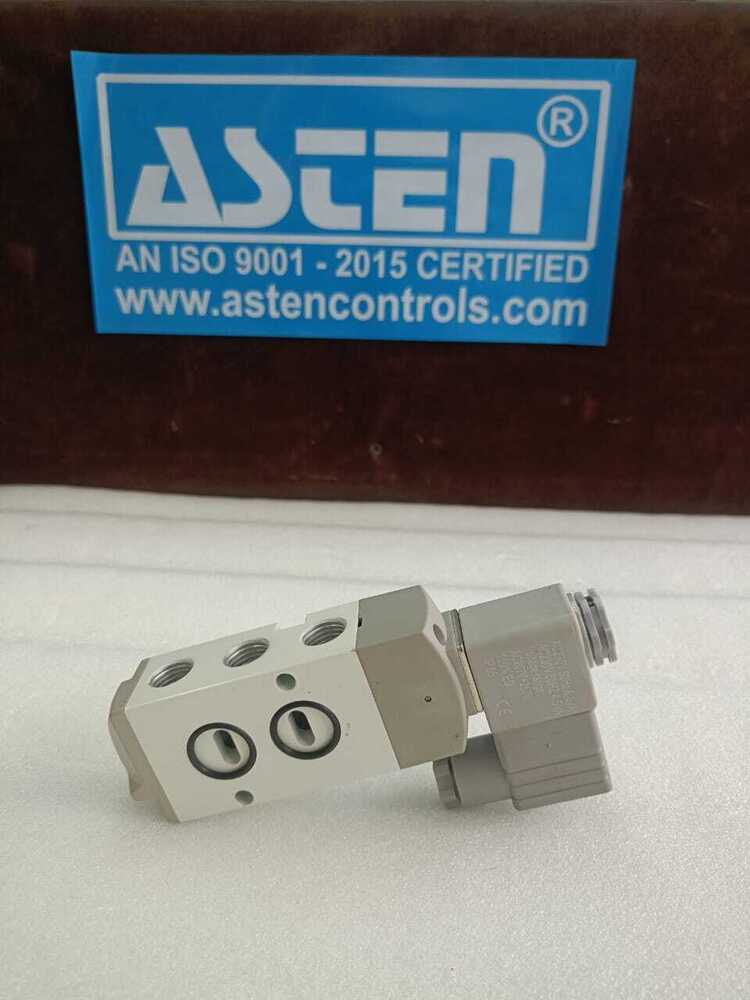

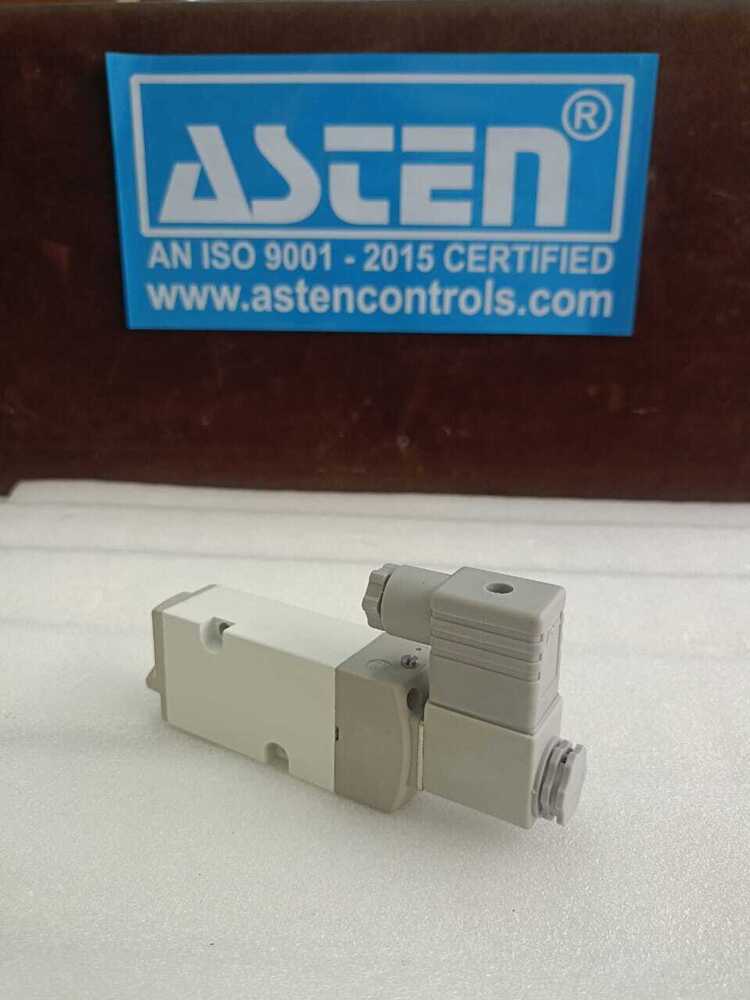

NAMUR Mounted Solenoid Valve ï 3/2 & 5/2 Pneumatic Control Valve

TheNAMUR Solenoid Valveis a compact, high-performanceelectromagnetic valvedesigned specifically for mounting directly onpneumatic actuatorswithNAMUR interface. This valve offers efficient, fast switching foron/off or modulating controlin automated systems, making it ideal foractuated ball valves, butterfly valves, and rotary actuators.

It is available in3/2 (for single acting actuators)and5/2 (for double acting actuators)configurations, withstandard voltage optionsof 24VDC, 230VAC, and 110VAC. Engineered withIP65 protection, high flow rates, andlow power consumption, this valve is essential inprocess automation, especially inoil & gas, pharma, chemical, and water treatment industries.

• ïïValve Type:NAMUR Mounted Solenoid Valve

• ïïConfiguration:3/2 for Single Acting, 5/2 for Double Acting

• ïïMounting Standard:NAMUR Interface (VDI/VDE 3845)

• ïïOperating Pressure:2 to 10 bar

• ïïBody Material:Aluminum / Brass / SS (on request)

• ïïVoltage Options:24V DC, 110V AC, 230V AC

• ïïCoil Type:Continuous Duty, IP65 / IP67

• ïïPort Size:1/4ï BSP / NPT

• ïïTemperature Range:-20C to +80C

• ïïMedium:Filtered, Lubricated / Non-Lubricated Compressed Air

• ïïManual Override:Push Button Type

• ïïDuty Cycle:100% Continuous

• Pneumatically Actuated Ball & Butterfly Valves

• On/Off Control Systems in Process Automation

• Oil & Gas, Refinery, and Petrochemical Plants

• Water & Effluent Treatment Plants

• Food & Beverage Automation

• Chemical and Pharmaceutical Dosing Systems

• Fire Fighting Valve Control Systems

• Power Plants and Boiler Systems

• ïï LED Coil with DIN Connector

• ïï Flameproof / Explosion Proof Coil (ATEX)

• ïï Manual Override (Momentary or Locking)

• ïï Integrated Silencer or Flow Control

• ïï Compatible with Electro-Pneumatic Positioners
