ELECTRICAL 2 WAY 2 PC BALL VALVE

Product Description

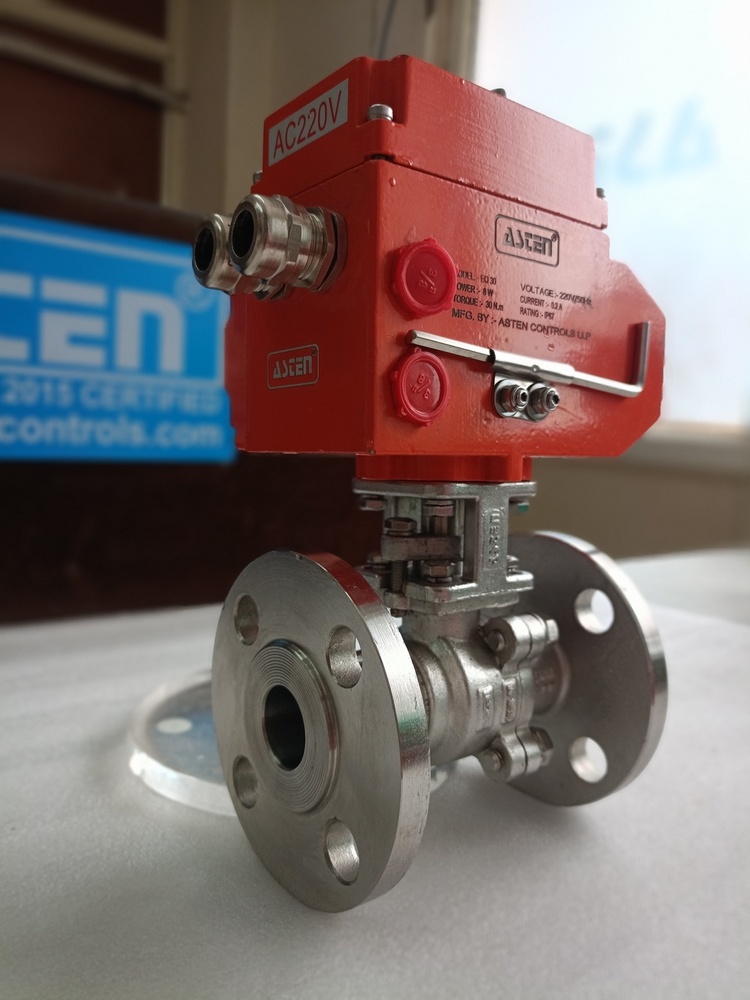

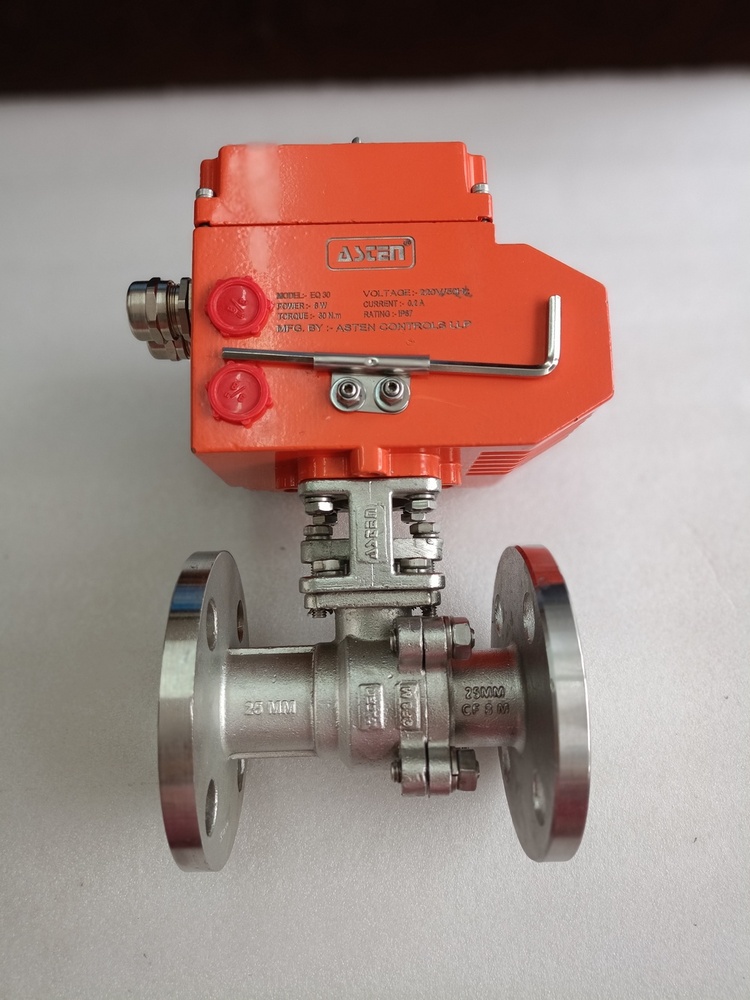

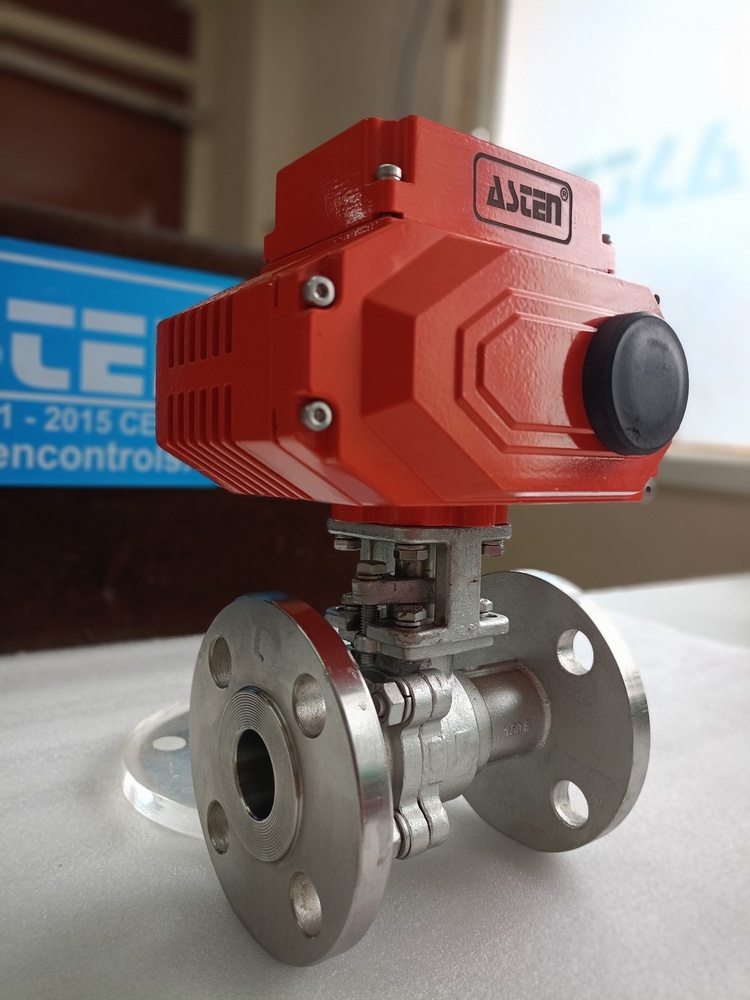

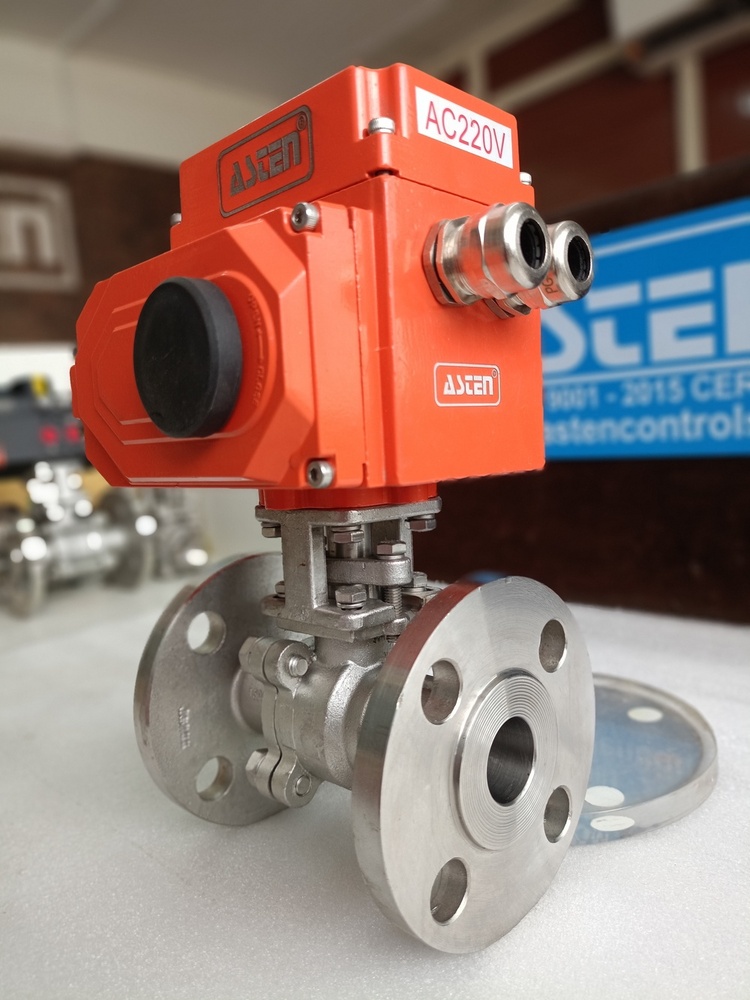

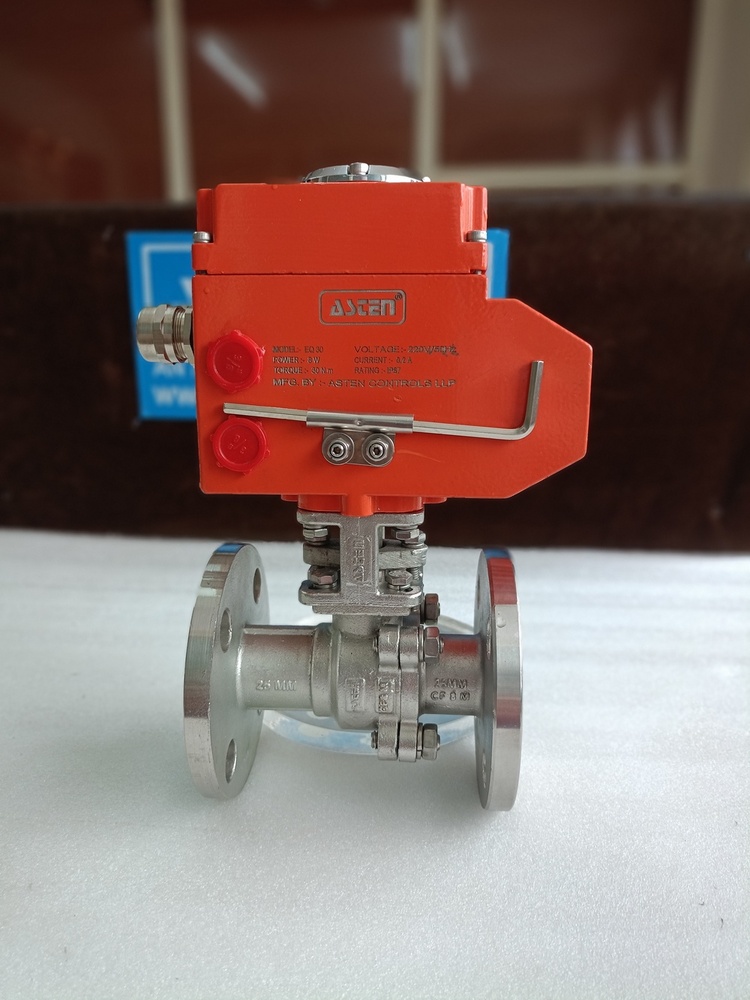

Electric Actuated Ball Valve ï ON/OFF & Modulating Type

TheElectric Ball Valve, also known as anelectrically actuated ball valve, is a highly efficient, motor-driven flow control device used forautomated on/off or modulating controlof liquids and gases in pipelines. Operated by anelectric actuator, it offersremote operation,precise control, andintegration with PLC/DCS systems.

Available in2-way and 3-way configurations, these valves are manufactured from high-gradeStainless Steel (SS304/SS316),Brass, orWCB, and can be supplied withscrewed, flanged, orwelded ends. They are suitable forHVAC systems, process industries, water treatment plants, andautomation systems.

• ïïValve Type:2-Way / 3-Way

• ïïActuator Type:ON/OFF or Modulating (4-20 mA / 0-10V)

• ïïVoltage Options:24VDC / 230VAC / 110VAC / 12VDC

• ïïSize Range:ï to 4ï (DN15 to DN100)

• ïïBody Material:SS304 / SS316 / Brass / WCB

• ïïBall & Stem:SS316, Antistatic & Blow-out Proof

• ïïSeat Material:PTFE / RPTFE

• ïïEnd Connections:Screwed (BSP/NPT), Flanged, Welded

• ïïTorque Output:10Nm to 100Nm (Based on Size)

• ïïIP Rating:IP67 Waterproof Enclosure

• ïïTemperature Range:-10C to +180C

• ïïManual Override:Yes (Optional)

• ïïPosition Indicator:Visual & Electrical Feedback

• Water Treatment Plants & RO Systems

• Chemical & Pharma Industries

• HVAC & Building Automation

• Food & Beverage Processing

• Oil & Gas Pipelines

• Fire Fighting & Safety Systems

• Power Plants & Steam Lines

• Automation & SCADA Controlled Systems

• ïïï Manual Override

• ïï Modulating Control (4-20mA / 0-10V)

• ïï Fail-Safe (Spring Return or Battery Backup)

• ïï Weatherproof / Explosion-Proof Actuator (ATEX)

• ïï Wireless/Bluetooth Control (on request)
