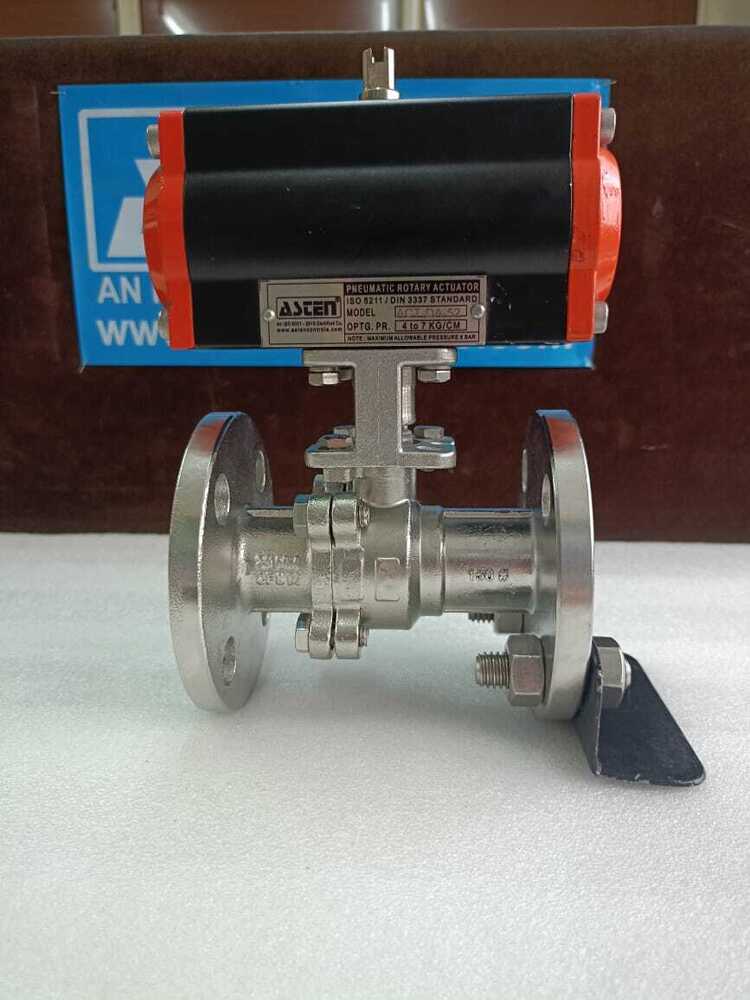

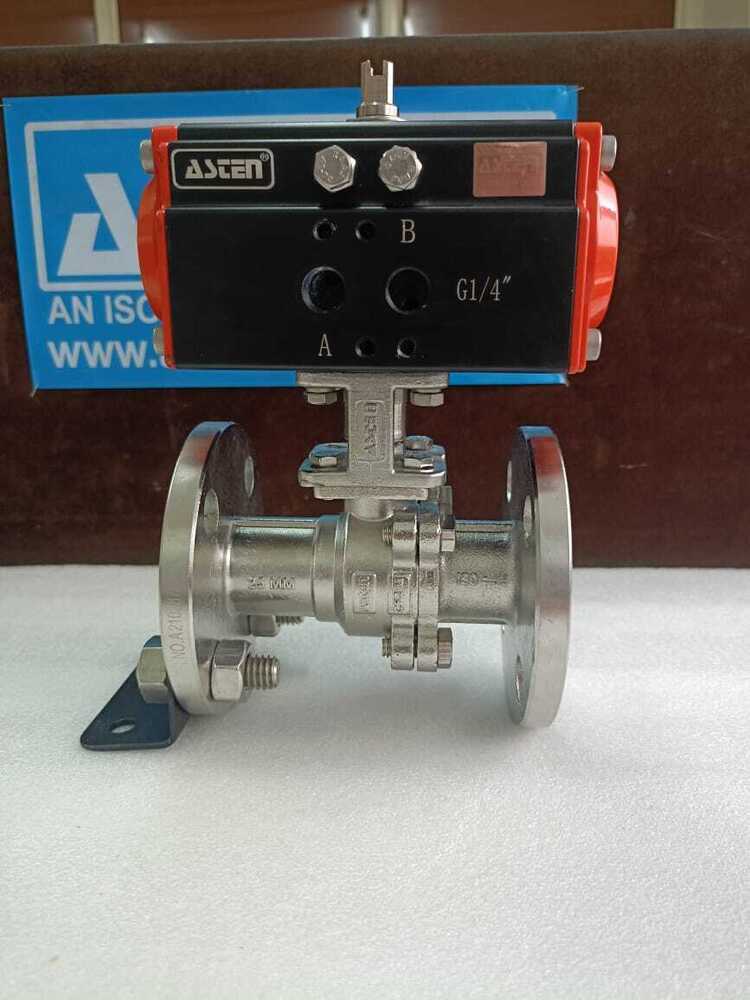

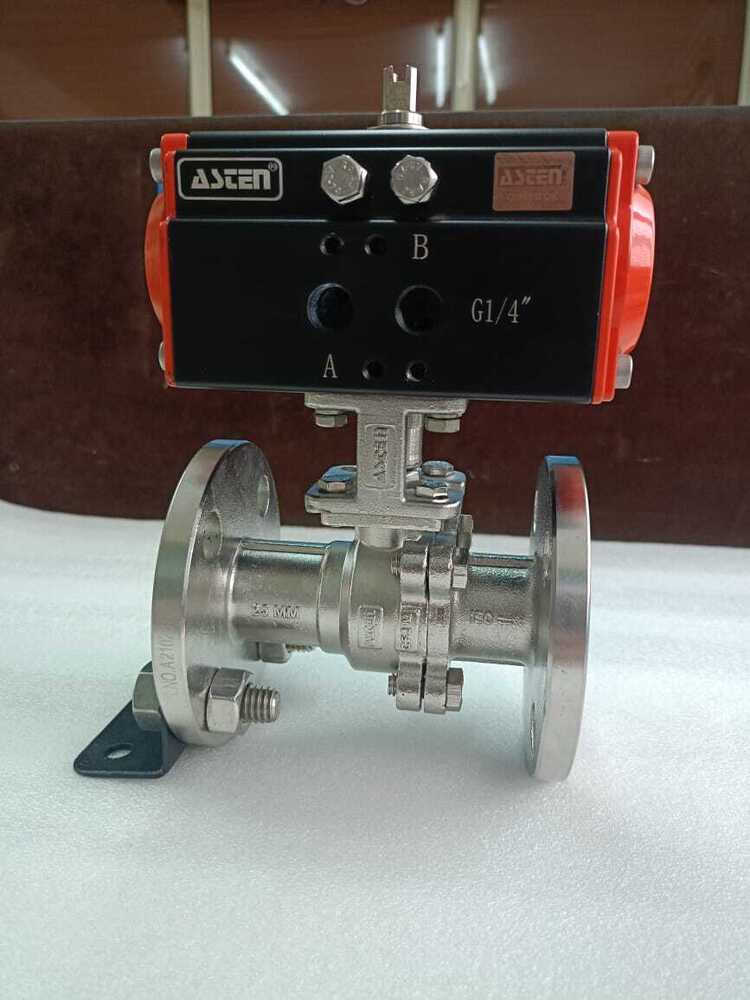

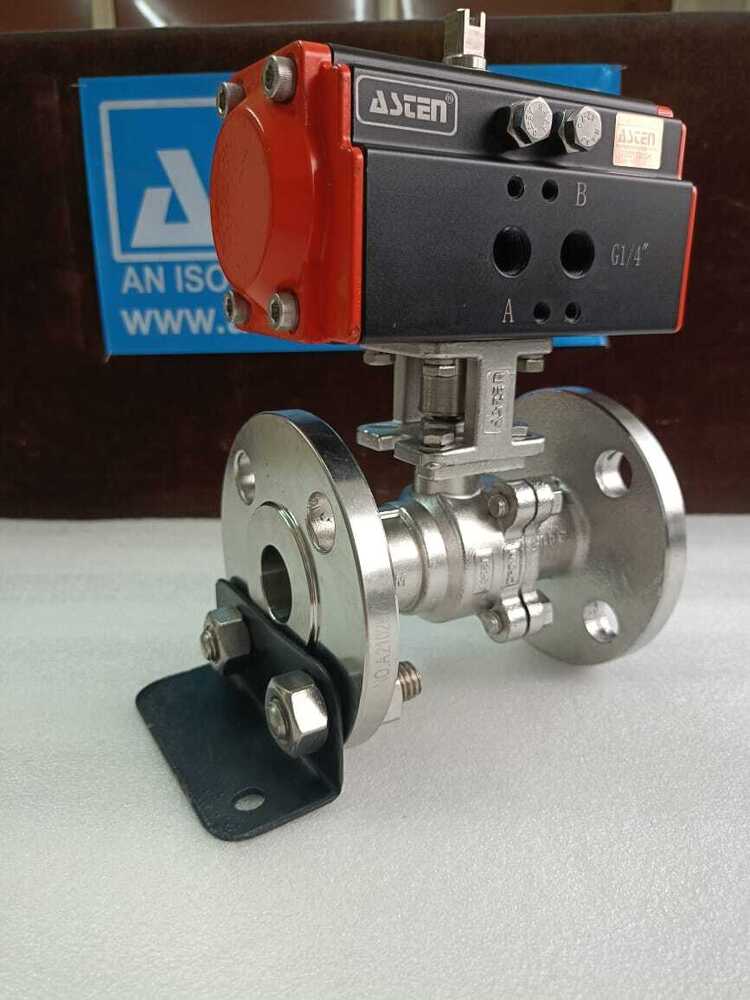

PNEUMATIC 2 PC BALL VALVE

Product Description

Flanged End Ball Valve “ Full Bore / Reduced Bore, ANSI / DIN / BS Standard

The Flanged Ball Valve is a high-performance, full-port valve engineered for reliable flow control and tight shutoff in industrial fluid handling systems. Designed with integral flanged ends, this valve is ideal for high-pressure and high-temperature applications where secure bolted connections and minimal leakage are critical.

Available in 2-piece or 3-piece design, this valve is manufactured from durable materials like Stainless Steel (SS304 / SS316), Carbon Steel (WCB), or Cast Iron (CI) and conforms to international flange standards such as ANSI B16.5, DIN PN16/PN40, and BS 4504. The full bore construction ensures minimal pressure drop, making it suitable for applications with high flow requirements.

• ”End Connection: Flanged “ ANSI / DIN / BS Standard

• ”Size Range:  to 12 (DN15 to DN300)

• ”Body Type: 2-Piece / 3-Piece

• ”Bore Type: Full Bore / Reduced Bore

• ”Material Options:

  • Stainless Steel (SS304 / SS316)

  • Carbon Steel (WCB)

  • Cast Iron / Ductile Iron

• ”Ball & Stem: SS316 / SS304, Antistatic & Blow-out Proof

• ”Seat Material: PTFE / RPTFE / TFM / Graphite

• ”Pressure Rating: ANSI 150 / 300 / PN16 / PN40

• ”Temperature Range: -20C to +250C

• ”Operation: Lever Handle / Gear Operated / Pneumatic / Electric

• ”Leakproof Performance: Class VI (Bubble-Tight Shutoff)

• Petrochemical & Refineries

• Water Treatment Plants

• Oil & Gas Industries

• Chemical Processing Units

• Steam Lines & Utility Piping

• HVAC & Fire Protection Systems

• Power Plants & Boiler Systems

• Food, Dairy & Beverage (SS316)

• ïï Lockable Lever Handle

• ïï Fire Safe Design (API 607)

• š™ï Pneumatic or Electric Actuated

• „ï High-Temperature & Cryogenic Sealing Options

• ïï Antistatic and Blowout-Proof Stem

• ïï Gearbox Operation for Larger Sizes
