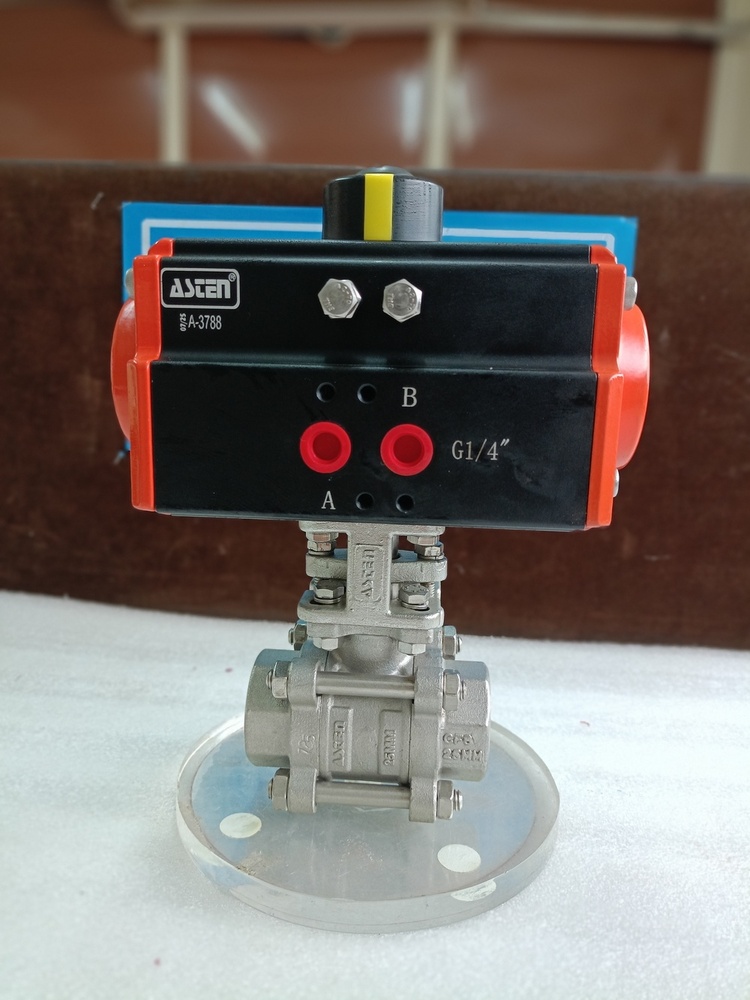

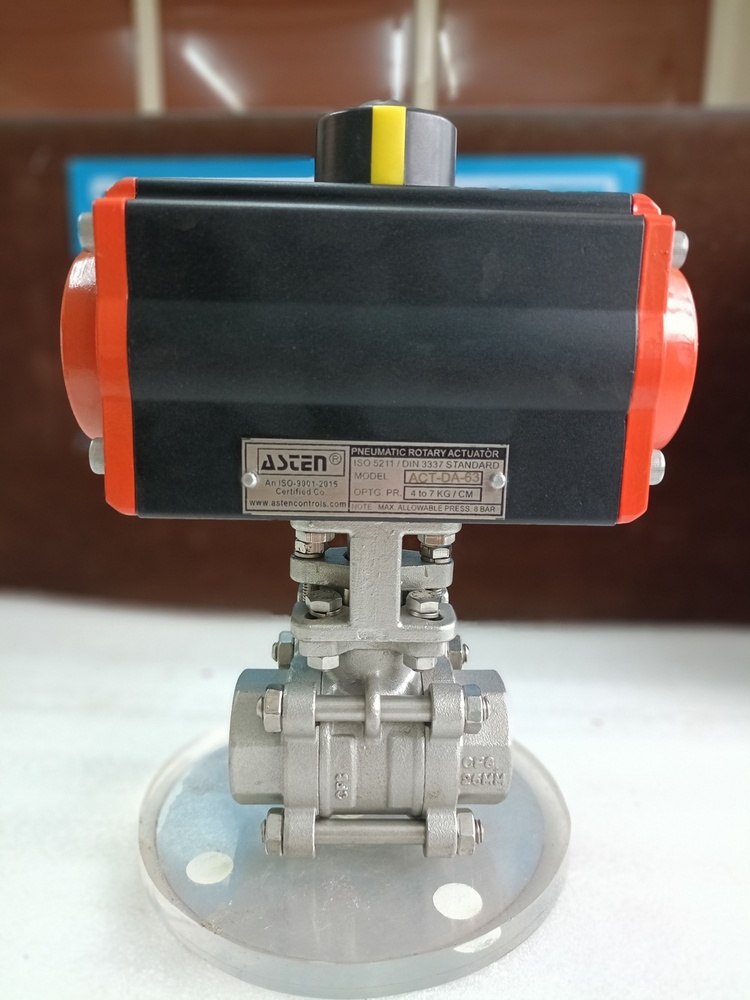

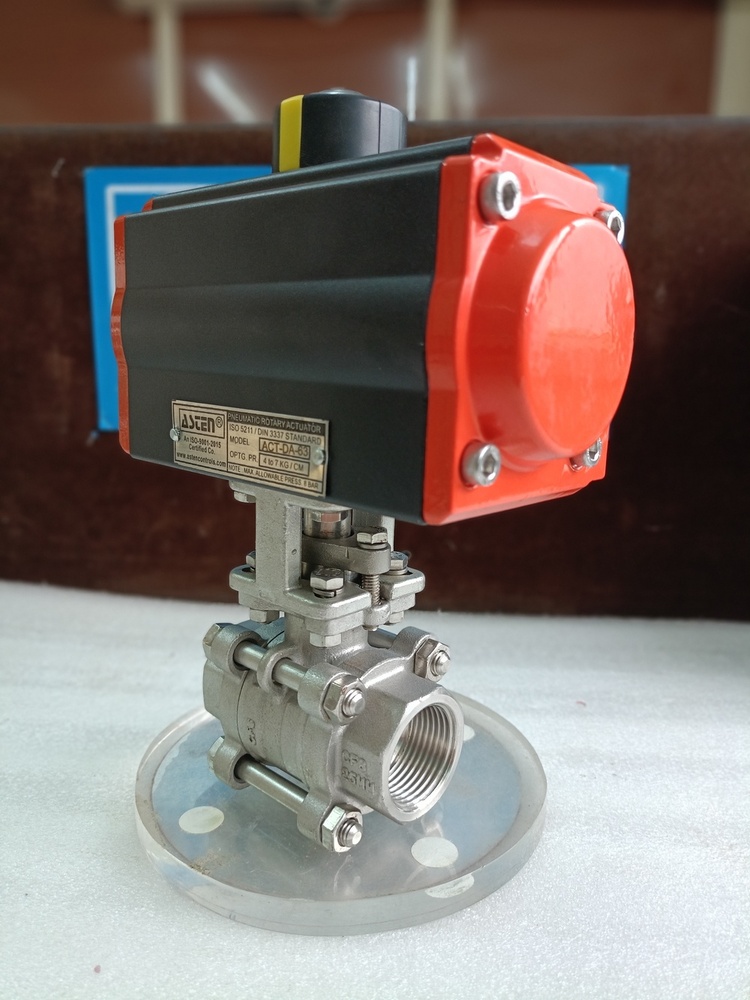

Screwed End Pneumatic Actuator Valve

उत्पाद वर्णन

Screwed End Ball Valve €œ Full Bore, BSP/NPT Threaded

AScrewed Ball Valveis a compact and cost-effective solution foron/off controlof fluids and gases in pipelines. Designed withscrewed (threaded) end connections, it is ideal for low to medium-pressure systems wherequick installation and easy maintenanceare essential.

These valves are manufactured inStainless Steel (SS304 / SS316),Brass,Forged Steel, orCarbon Steel, and are available inBSP (British Standard Pipe)orNPT (National Pipe Thread)threads. Commonly used inresidential plumbing, industrial process lines, air and gas pipelines, and utility systems, they offer excellentleak-tight sealingand corrosion resistance.

• €ÃSize Range:Â" to 4" (DN8 to DN100)

• €ÃEnd Connection:Screwed (BSP / NPT Female Threads)

• €ÃDesign Type:1-टुकड़ा, 2-टुकड़ा, or 3-टुकड़ा Body

• €ÃBore Type:Full Bore / Reduced Bore

• €ÃBody Material:Stainless Steel (SS304 / SS316), Brass, Forged Steel, WCB

• €ÃBall Material:SS316 / Chrome Plated Brass

• €ÃSeal Material:PTFE / RPTFE / TFM / Viton

• €ÃWorking Pressure:Up to 1000 PSI (model dependent)

• €ÃTemperature Range:-20C to +180C

• €ÃHandle:Lockable Lever Type or Butterfly Handle

• €ÃISO 5211 Mounting Pad(optional in 3-piece design)

• Plumbing and Water Lines

• Compressed Air Systems

• Industrial Chemical Pipelines

• Gas Distribution Lines

• Oil and Fuel Lines

• HVAC and Utility Installations

• Food & Beverage and Pharma (SS316 grade)

• 3-टुकड़ा Screwed Ball Valve for Easy Maintenance

• Fire Safe Design (API 607)

• Antistatic and Blow-out Proof Stem

• High-Temperature and High-Pressure Options

• Actuator-ready Models (Pneumatic or Electric)
