Send Inquiry
Price And Quantity
- 01 , , Piece
- 1040 INR/Piece
Product Specifications
- 1/2 to 2 Inch
Trade Information
- 100 , , Piece Per Week
- 1 Week
Product Description

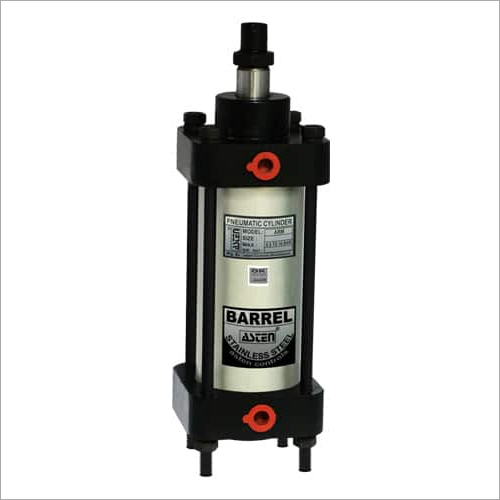

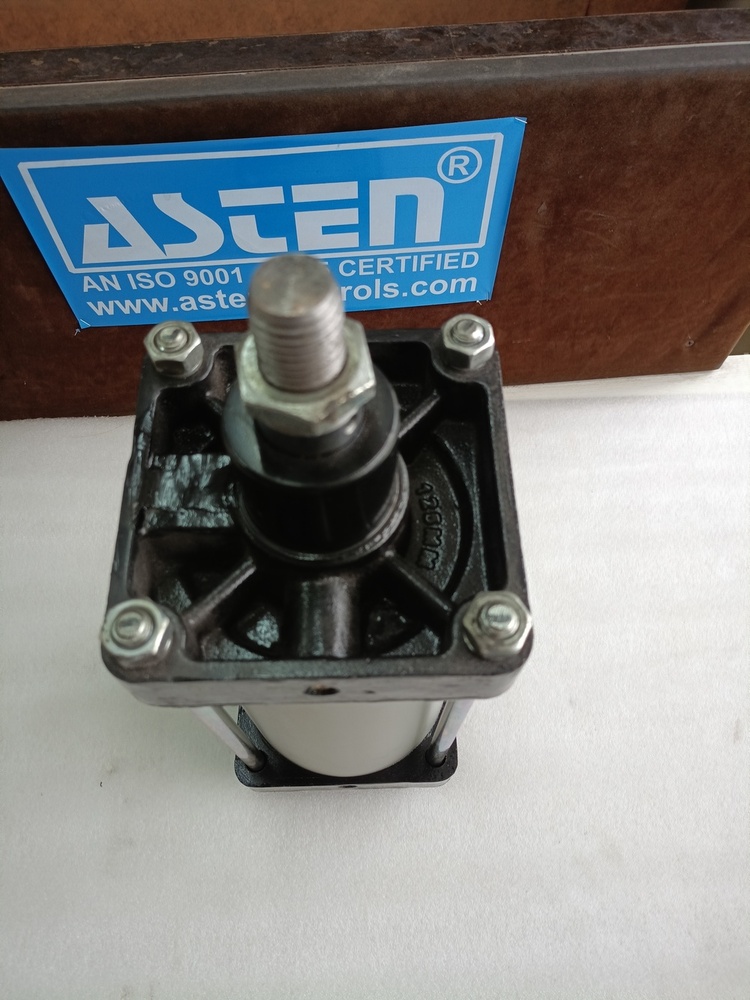

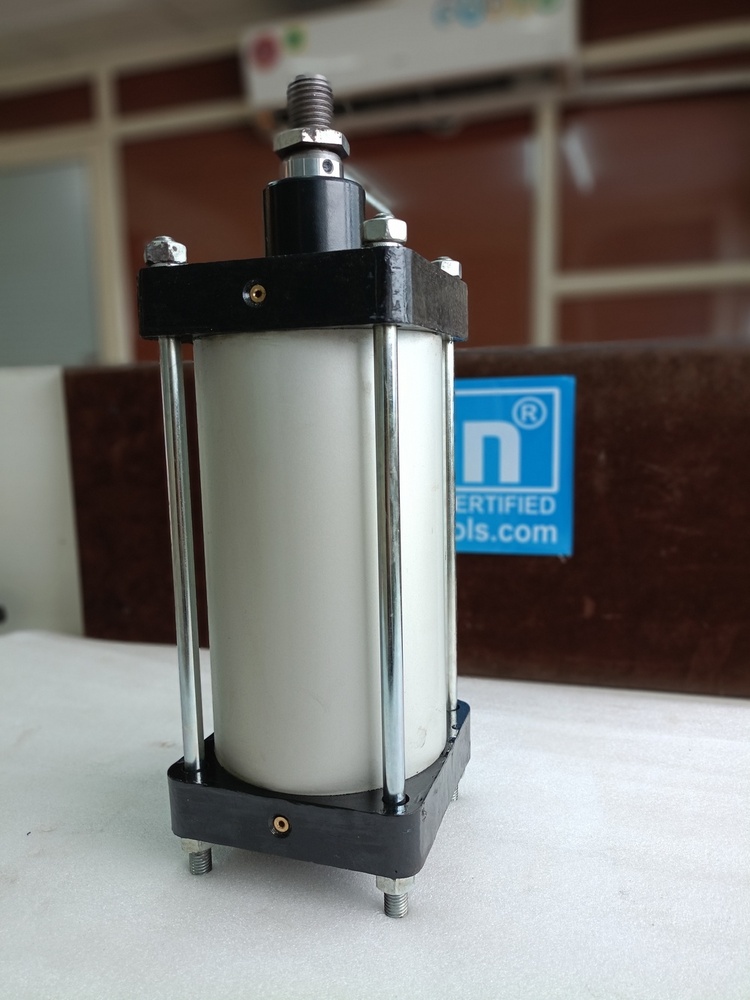

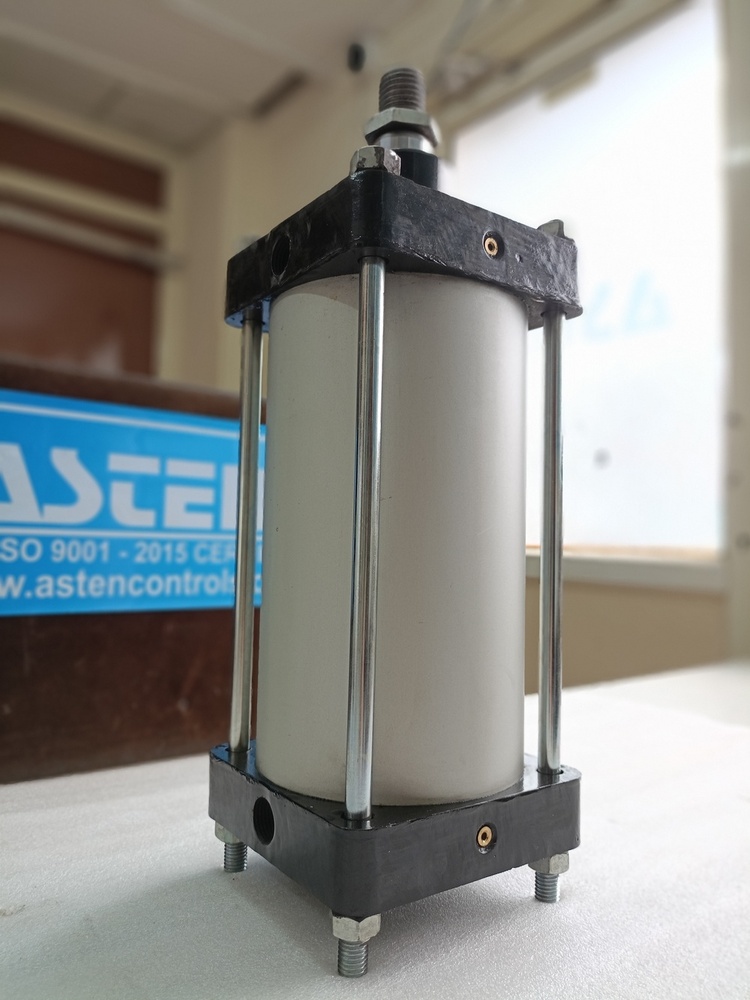

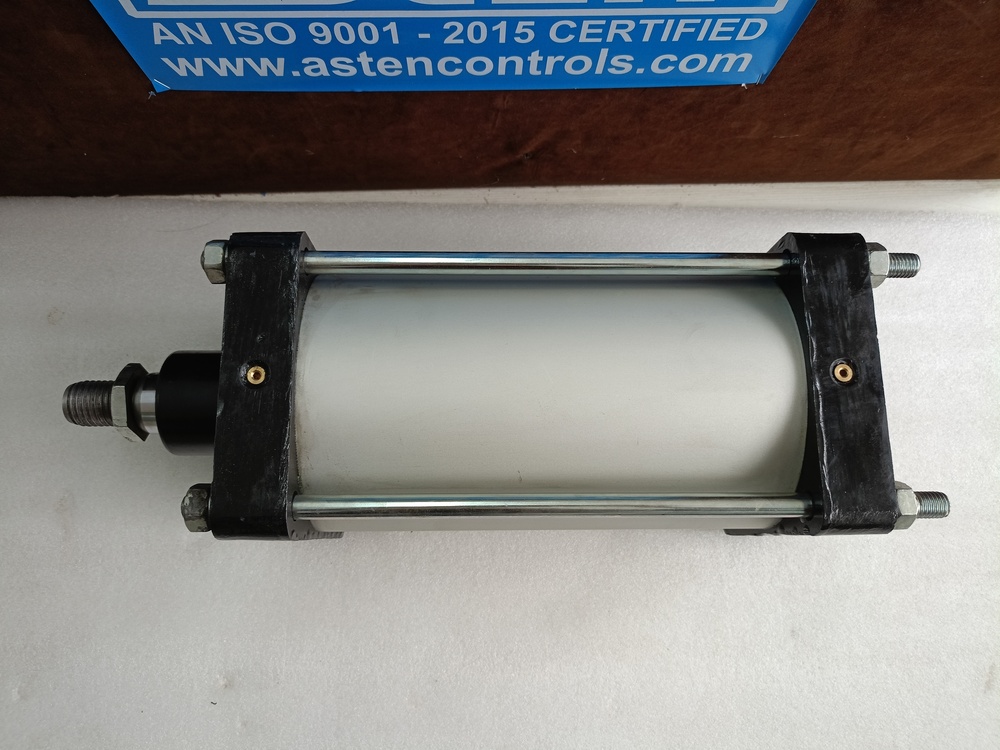

We are presenting a superlative assortment of Heavy Duty Pneumatic Cylinders. They are the mechanical devices which with the help of compressed gas produces a force in a reciprocating linear motion. The cylinder comprises of a chamber from which the compressed air enters and there is also a path for it to leave for exerting a large amount of force on the piston face which does most of the work. They have a rugged configuration that does not get damage even after utilizing for many number of years.
- End Cover : Cast Iron
- Piston : Cast Iron
- Seals : Nitrile
- Shaft : EN-8
- Barrel : SS
- Operating Press.: 3 to 10 Bar
Technical Specification of Heavy Duty Pneumatic Cylinders
| Bore Size | 25mm to 65mm | 75mm to 450mm |
| Barrel | Aluminum | Stainless steel |
| Stroke | Up to 2500mm | |
| Piston Rod | En8 with hard chrome plate (25 microns around the shaft) | |
| Piston Rod Dia | 25mm, 25mm, 32mm, 32mm, 38mm, 51mm, 56mm, 70mm | |
| Cushioning | Available at both ends | |
| Top/ End Cover | Cast Iron | |
| Seals | Nitrile (Vition seal available on request for high temperature) | |
| Surface Treatment | Auto finish enameling end cover and cylinder barrel | |
| Mounting | Std. Mounting available (for more see dimension) | |
More Product Details of Heavy Duty Pneumatic Cylinders
| Body | CF8, CF8M |
| Product Type | Normally Close / Open |
| Media | Air, Gas |
| Model | AYCV-F |
| Brand | Asten Controls LLP |
| Dimension/Size | 1/2 to 2 Inch |
