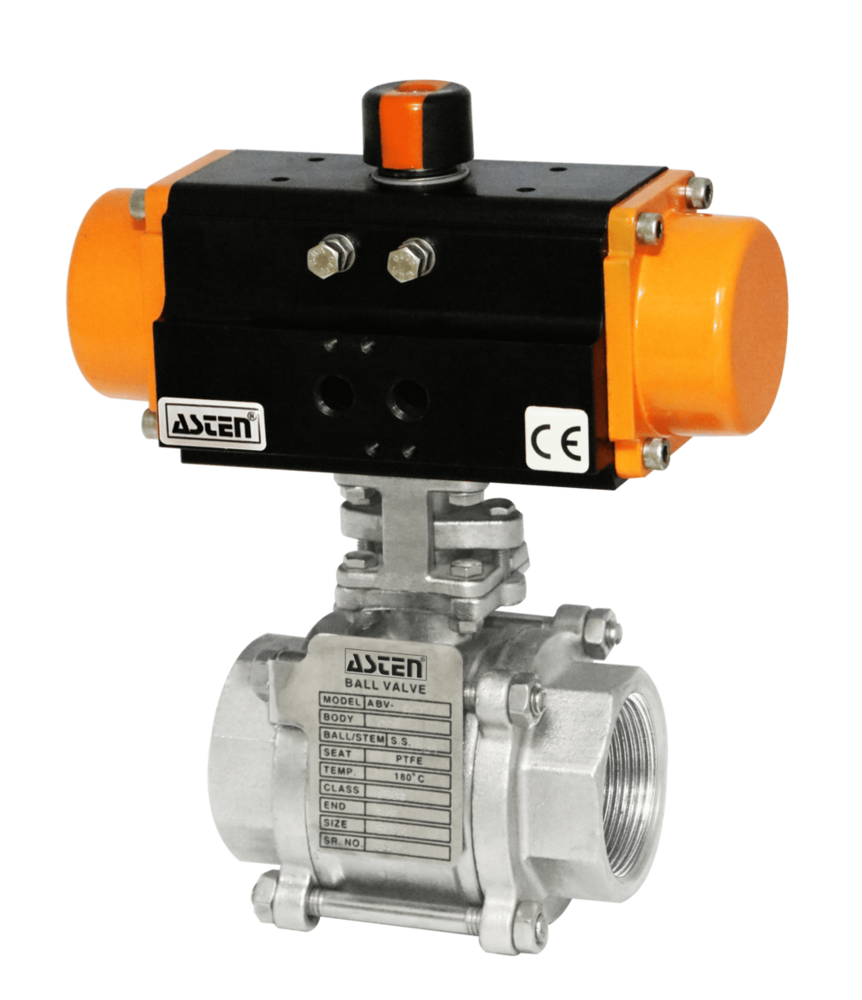

pneumatic 3 pc 2 way ball valve screwed end

Product Description

Product Name:

Screwed End Ball Valve “ Full Bore, BSP/NPT Threaded

Product Description:

A Screwed Ball Valve is a compact and cost-effective solution for on/off control of fluids and gases in pipelines. Designed with screwed (threaded) end connections, it is ideal for low to medium-pressure systems where quick installation and easy maintenance are essential.

These valves are manufactured in Stainless Steel (SS304 / SS316), Brass, Forged Steel, or Carbon Steel, and are available in BSP (British Standard Pipe) or NPT (National Pipe Thread) threads. Commonly used in residential plumbing, industrial process lines, air and gas pipelines, and utility systems, they offer excellent leak-tight sealing and corrosion resistance.

… Key Features:

• ”Size Range: ¼" to 4" (DN8 to DN100)

• ”End Connection: Screwed (BSP / NPT Female Threads)

• ”Design Type: 1-Piece, 2-Piece, or 3-Piece Body

• ”Bore Type: Full Bore / Reduced Bore

• ”Body Material: Stainless Steel (SS304 / SS316), Brass, Forged Steel, WCB

• ”Ball Material: SS316 / Chrome Plated Brass

• ”Seal Material: PTFE / RPTFE / TFM / Viton

• ”Working Pressure: Up to 1000 PSI (model dependent)

• ”Temperature Range: -20C to +180C

• ”Handle: Lockable Lever Type or Butterfly Handle

• ”ISO 5211 Mounting Pad (optional in 3-piece design)

ïï Technical Specifications:

ïï Applications:

• Plumbing and Water Lines

• Compressed Air Systems

• Industrial Chemical Pipelines

• Gas Distribution Lines

• Oil and Fuel Lines

• HVAC and Utility Installations

• Food & Beverage and Pharma (SS316 grade)

ïï Available Variants:

• 3-Piece Screwed Ball Valve for Easy Maintenance

• Fire Safe Design (API 607)

• Antistatic and Blow-out Proof Stem

• High-Temperature and High-Pressure Options

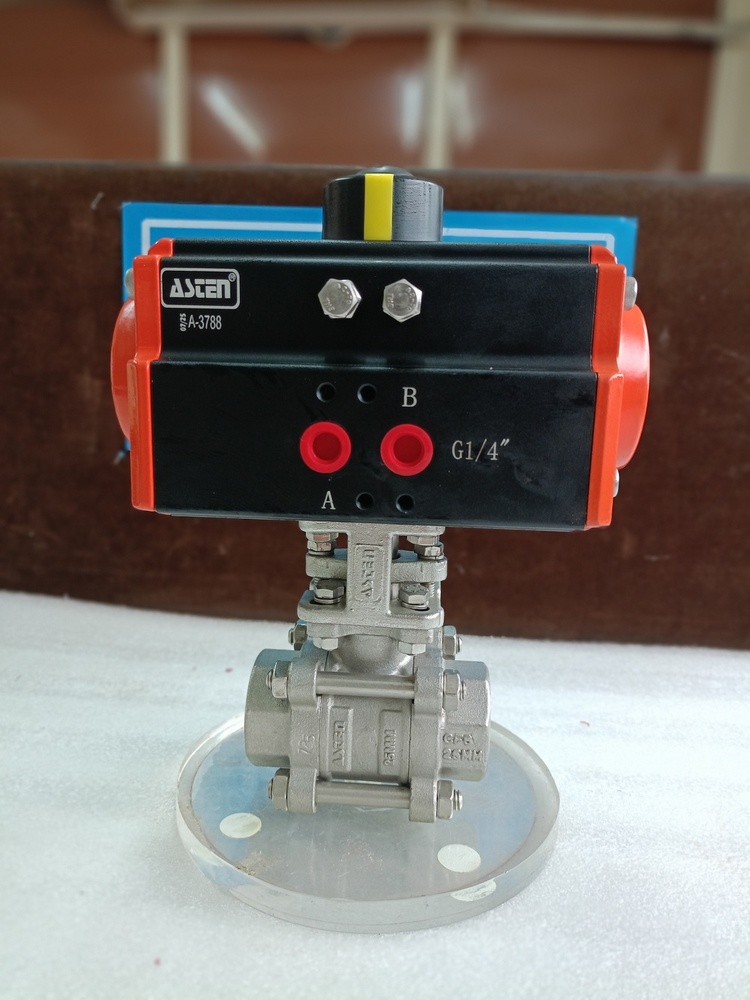

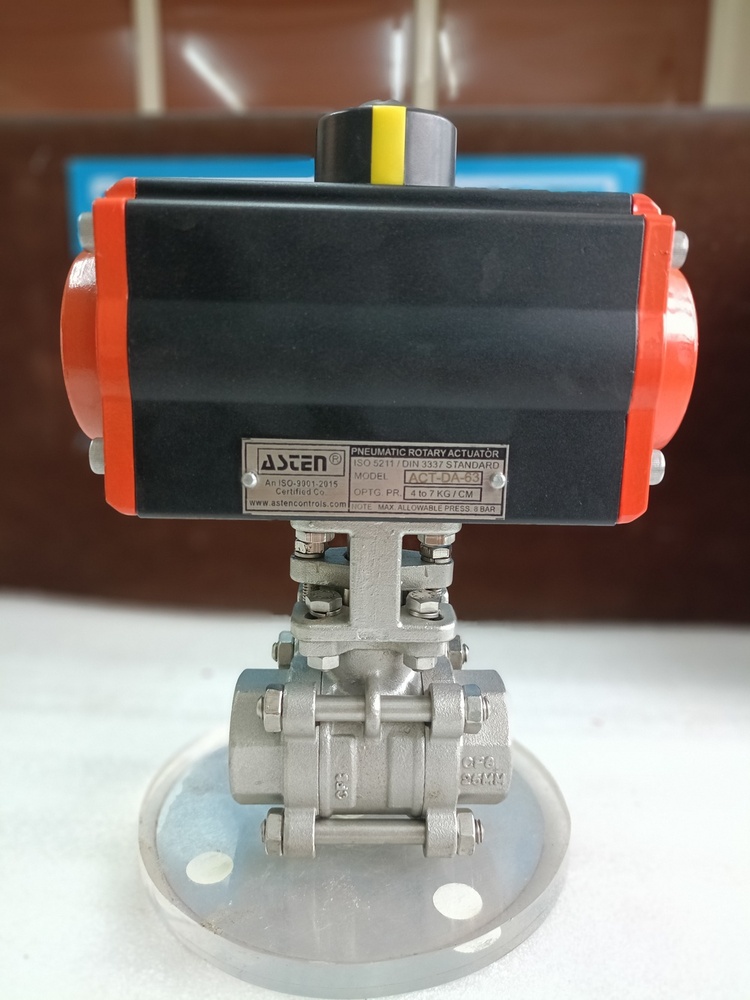

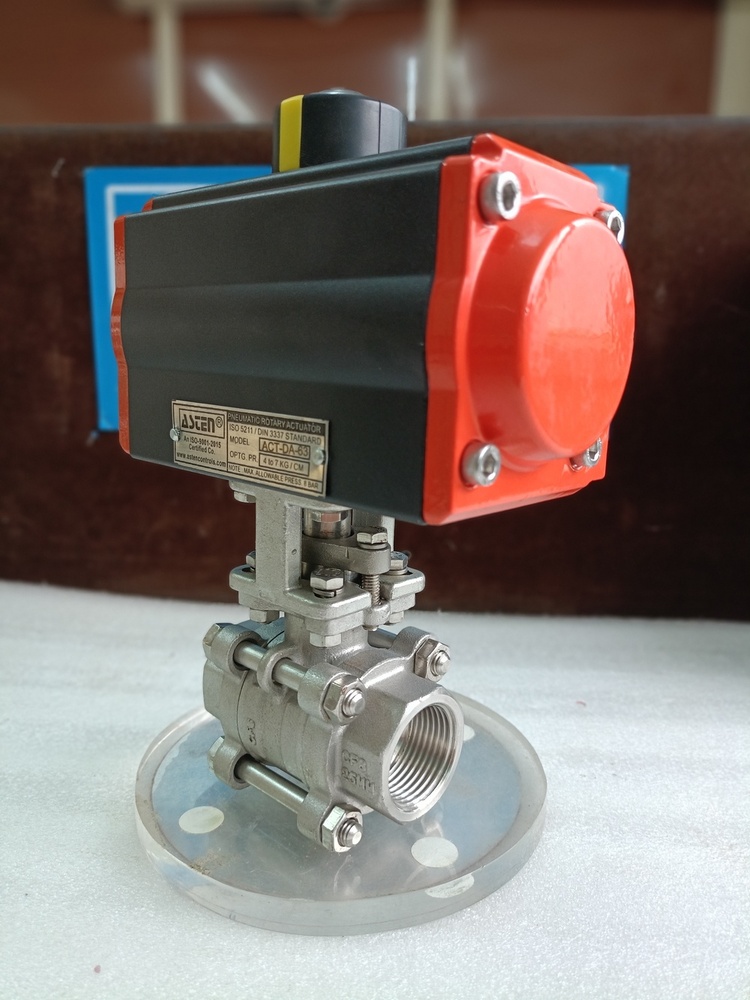

• Actuator-ready Models (Pneumatic or Electric)
