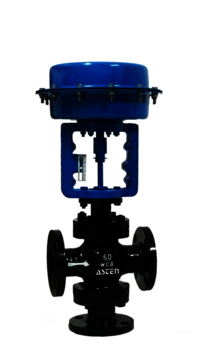

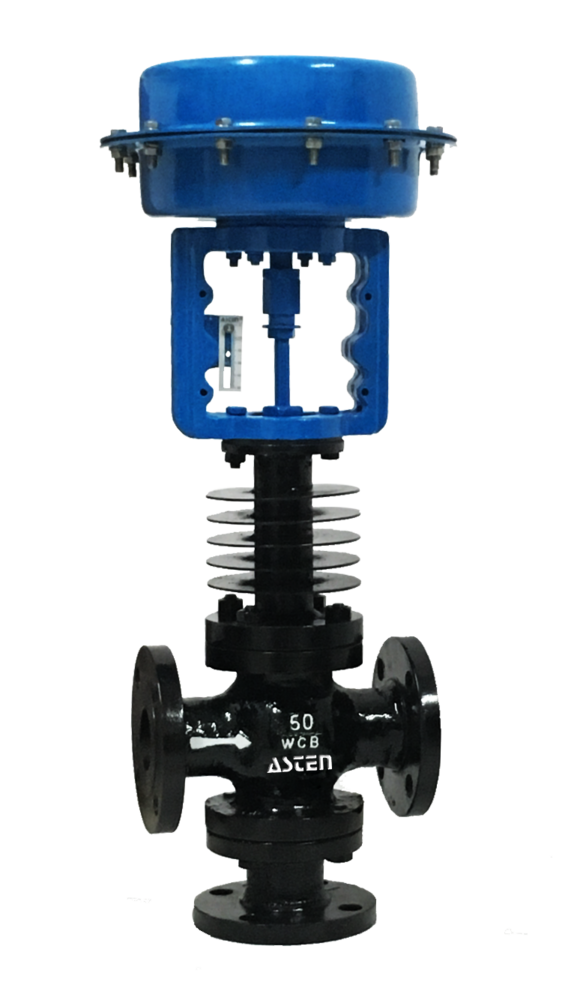

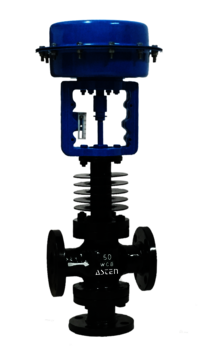

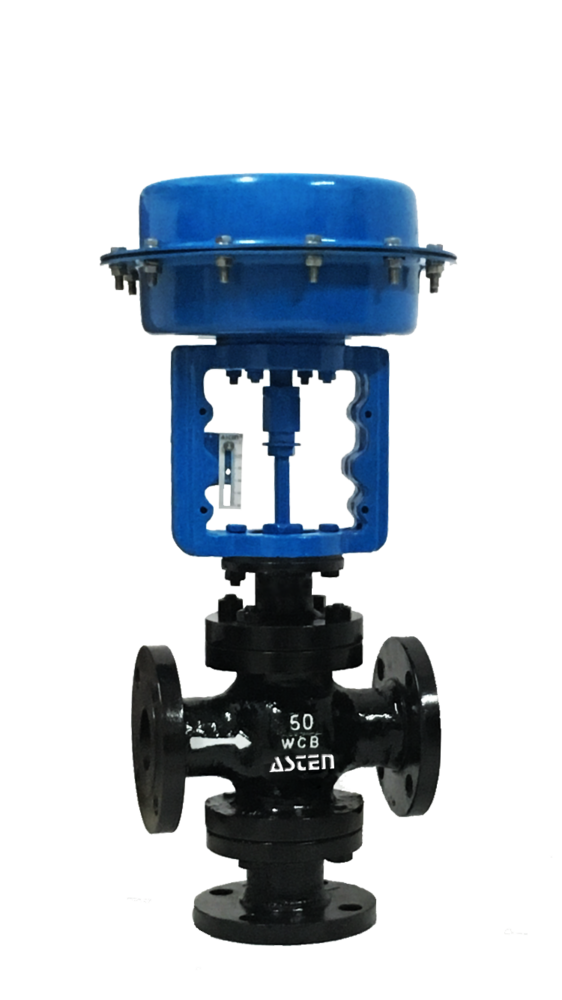

Diaphragm Type Control Valve

We are proposing an extensive assortment of Diaphragm Type Control Valves. They are used for controlling the flow by opening of valve with the help of air pressure that is applied through a pilot valve into the actuator which further raises the diaphragm connected to the valve. They are experiencing a wide market demand owing to their last longing performing capability along with their accessibility in different bunch of features.

  • Body : WCB / CF8
  • Internal : CF8
  • Seat : Metal To Metal
  • Diaphragm : Nitrile Canvas Moulded
  • Temperature : 450°C / 220°C
  • Ends :  Flanged 150#

Technical specification

Actuator

Diaphragm and Multy spring tye. Air to open/ Air to close as a standard (piston actuators/ Electrical actuators on request)

Bonnet

Standard for ('CLD temperature up to 220ºC)

Extended with FINS for ('CLD temperature up to 450ºC)

Internals

S.S. 304 (316 hard facing when required) other materials on request

Gland Packings

Telfon/ Grafoil

Trim Desing

Contoured parabolic/ Pressure balanced

Sizes

1/2” to 12”

Characteristic

Linear/ Equal percentage/ on – off (Quick opening)

End Connection

Flanged end to end ANSI B16.5 CL 150 (300#/ 600# available on requrst)

Pessure Ratings

ANSI B16.5 CL 150/ 300/ 600

Leakage

ANSI B16.104 CL lV for metal to metal seating

(Class V and Class Vl leak tightness with soft seating on request)

Diaphragm Operated Control Valve

  • Model: ACHD
  • Actuator: Spring return type, Heavy duty pnenmatic Diaphragm
  • Type: Normally Close/ Open
  • Size Range: 1/2” to 12”
  • Body: WCB
  • Diaphragm Cover: M.S (Steel Metal)
  • Working Press: 150#/ 300#/ 600#
  • Working Temp.: 450ºC
  • Seating: Metal to Metal and Soft Seated
  • Application: Air, Water, Oil, Gas, Steam and Hydraulic oil
